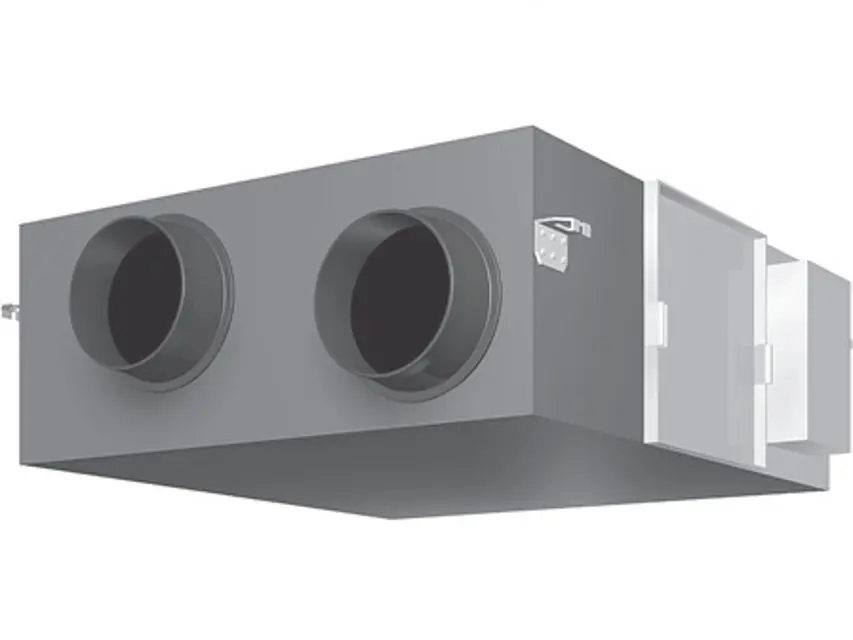

Daikin Energy Recovery Ventilator VAM600GVJU

Check for High Pressure in cooling

Check for High Pressure in heating

Check for broken wire of the relay wire

Procedure for checking outdoor-outdoor unit transmission wiring for broken wires

Turn OFF the power supply to all equipment

Short circuit between the outdoor-outdoor unit terminal F1 and F2 in the 'Outdoor Unit A'

Conduct continuity checks between the transmission wiring terminal blocks F1 and F2 of the central remote controller using a multimeter

Details of compressor capacity control while in cooling, refer to Compressor PI control

The low pressure protection control includes low pressure protection control and hot gas bypass control

In cooling, the indoor unit electronic expansion valve is used for superheated degree control

In heating, the outdoor unit electronic expansion valve is used for superheated degree control of outdoor unit heat exchanger

Warning: This procedure requires trained personnel with PPE!

Choose the type of vacuuming and dehydration

Vacuum pump enables vacuuming down to –100.7 kPa (–14.6 psi)?

Enter the vacuum pump run time in hours

Degree of vacuum reached –100.7 kPa (–14.6 psi) or less?

Leak tests conducted if vacuum did not reach –100.7 kPa (–14.6 psi) or less after 3 hours?

Compressor left at the degree of vacuum of –100.7 kPa (–14.6 psi) or less for a period of 1 hour or more?

Vacuum gauge reading did not rise after 1 hour?

Enter the amount of refrigerant charged

Superheating temperature control in cooling is conducted by indoor unit electronic expansion valve

Enter the superheating temperature in cooling

Superheating temperature control in heating is conducted by outdoor unit electronic expansion valve (main)

Enter the superheating temperature in heating

Judgement criteria of superheat operation: Suction gas superheated degree: 10°C (50°F) and over. Discharge gas superheated degree: 45°C (113°F) and over, except immediately after compressor starts up or is running under drooping control

Is the suction gas superheated degree 10°C (50°F) and over?

Is the discharge gas superheated degree 45°C (113°F) and over, except immediately after compressor starts up or is running under drooping control?

Enter any additional observations

Sign off on the superheat operation check

Superheated degree of suction gas

Superheated degree of suction gas

Electronic expansion valve open?
