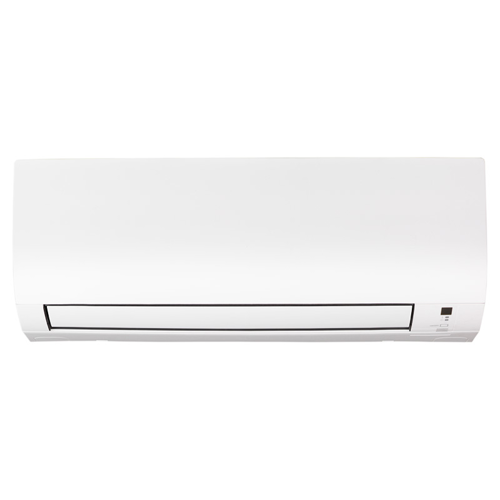

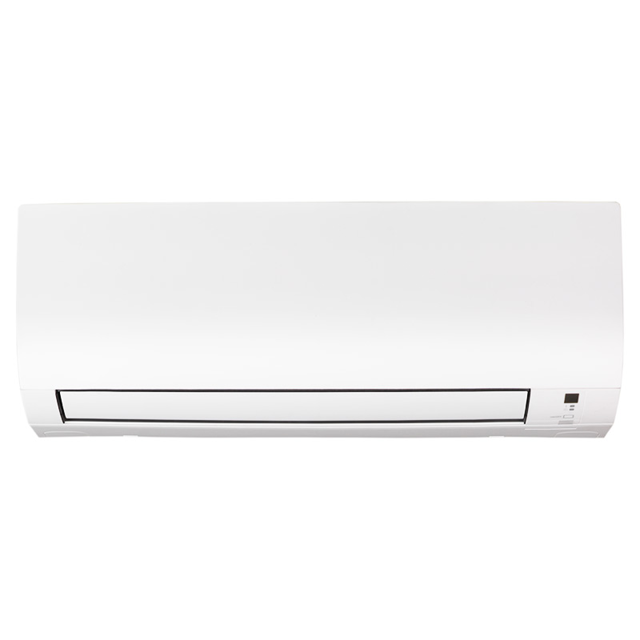

Daikin Air Conditioner R32 - FTXP25L2V1B

Warning: Handle the filters with care to avoid damage

Tabs on the filter frame removed

Reminder: Do NOT throw away the filter frame, but use it again

Reminder: Dispose of the old filter as non-flammable waste

Sign off on the filter replacement

Push the tab at the centre of each air filter, then pull it down

Remove the titanium apatite deodorizing filter and silver particle filter from the tabs

Wash the air filters with water or clean them with a vacuum cleaner

Soak in lukewarm water for about 10 to 15 minutes

If the dust does NOT come off easily, wash the air filters with a neutral detergent diluted in lukewarm water. Dry the air filters in the shade

Be sure to remove the titanium apatite deodorizing and silver particle filters

Sign off on the air filter cleaning

WARNING! The refrigerant inside the unit is mildly flammable, but normally does NOT leak. If the refrigerant leaks in the room and comes in contact with fire from a burner, a heater, or a cooker, this may result in fire, or the formation of a harmful gas.

Turn off any combustible heating devices, ventilate the room, and contact the dealer where you purchased the unit.

Do NOT use the unit until a service person confirms that the part from which the refrigerant leaked has been repaired.

WARNING! Do NOT pierce or burn refrigerant cycle parts.

Do NOT use cleaning materials or means to accelerate the defrosting process other than those recommended by the manufacturer.

Be aware that the refrigerant inside the system is odourless.

WARNING! The appliance shall be stored in a room without continuously operating ignition sources (example: open flames, an operating gas appliance or an operating electric heater).

NOTICE! Maintenance MUST be done by an authorized installer or service agent.

We recommend performing maintenance at least once a year. However, applicable legislation might require shorter maintenance intervals.

Remove the titanium apatite deodorizing and silver particle filters from the tabs

Remove the dust from the filter with a vacuum cleaner

Soak the filter for 10 to 15 minutes in warm water

Do NOT remove the filter from the frame

After washing, shake off remaining water and dry the filter in the shade

Do NOT wring out the filter when removing water

Sign off on the filter cleaning
