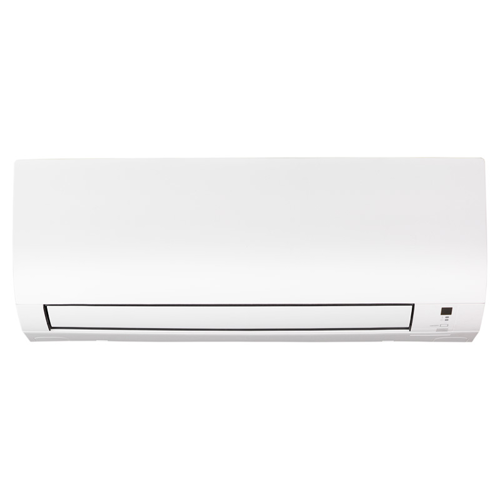

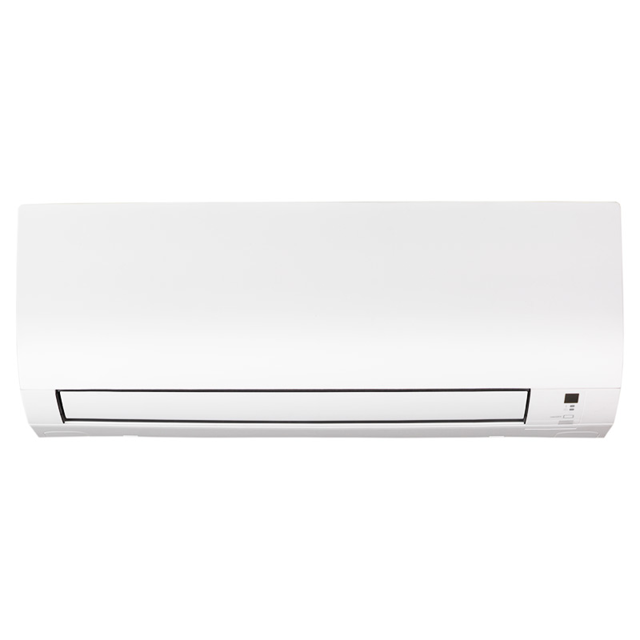

Daikin Air Conditioner FTXP25M5V1B

Create an account to install this asset package.

Maintenance Plans for Daikin Air Conditioner Model FTXP25M5V1B

Integrate maintenance plans directly into your work orders in MaintainX.

Indoor Unit and User Interface Cleaning

NOTICE! Do NOT use gasoline, benzene, thinner polishing powder or liquid insecticide. Possible consequence: Discoloration and deformation

Do NOT use water or air of 40°C or higher. Possible consequence: Discoloration and deformation

Do NOT use polishing compounds

Do NOT use a scrubbing brush. Possible consequence: The surface finishing peels off

DANGER: RISK OF ELECTROCUTION. Before cleaning, be sure to stop the operation, turn the breaker off or pull out the supply cord. Otherwise, an electric shock and injury may result

Did you stop the operation, turn the breaker off or pull out the supply cord before cleaning?

Did you use a soft cloth for cleaning?

Was it difficult to remove stains?

If yes, did you use water or a neutral detergent for cleaning?

Run this procedure

1 Yearly Battery Replacement

Remove the back cover

Insert both batteries at once

Put the cover back

Run this procedure

3 Yearly Titanium Apatite Deodorizing Filter and Silver Particle Filter Replacement

Remove the tabs on the filter frame

Replace the filter with a new one

Did you keep the filter frame for reuse?

Dispose of the old filter as non-flammable waste

Remove the filter from the tabs

Prepare a new filter

Sign off on the filter replacement

Run this procedure

1 Yearly Air Conditioner Maintenance

WARNING! The refrigerant inside the unit is mildly flammable, but normally does NOT leak. If the refrigerant leaks in the room and comes in contact with fire from a burner, a heater, or a cooker, this may result in fire, or the formation of a harmful gas.

Turn off any combustible heating devices, ventilate the room, and contact the dealer where you purchased the unit.

Do NOT use the unit until a service person confirms that the part from which the refrigerant leaked has been repaired.

WARNING! Do NOT pierce or burn refrigerant cycle parts.

Do NOT use cleaning materials or means to accelerate the defrosting process other than those recommended by the manufacturer.

Be aware that the refrigerant inside the system is odourless.

WARNING! The appliance shall be stored in a room without continuously operating ignition sources (example: open flames, an operating gas appliance or an operating electric heater).

NOTICE! Maintenance MUST be done by an authorized installer or service agent.

We recommend performing maintenance at least once a year. However, applicable legislation might require shorter maintenance intervals.

Run this procedure

6 Monthly Titanium Apatite Deodorizing Filter and Silver Particle Filter Cleaning

Remove the titanium apatite deodorizing and silver particle filters from the tabs

Remove the dust from the filter with a vacuum cleaner

Soak the filter for 10 to 15 minutes in warm water

Do NOT remove the filter from the frame

After washing, shake off remaining water and dry the filter in the shade

Do NOT wring out the filter when removing water

Sign off on the filter cleaning

Run this procedure
