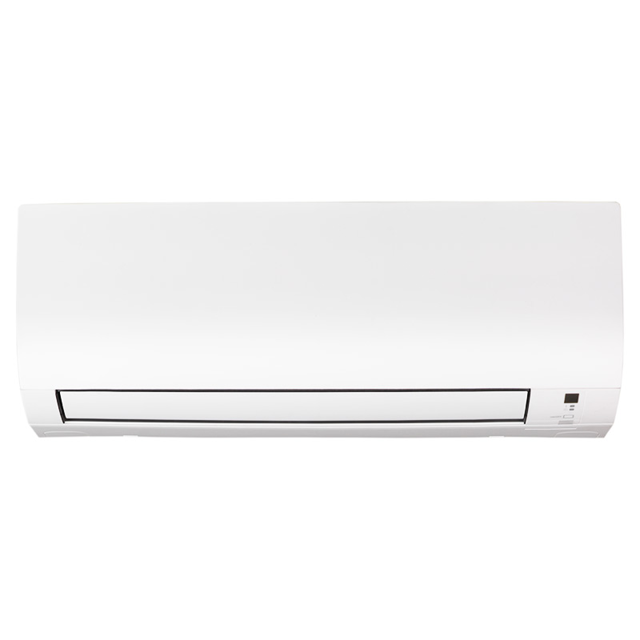

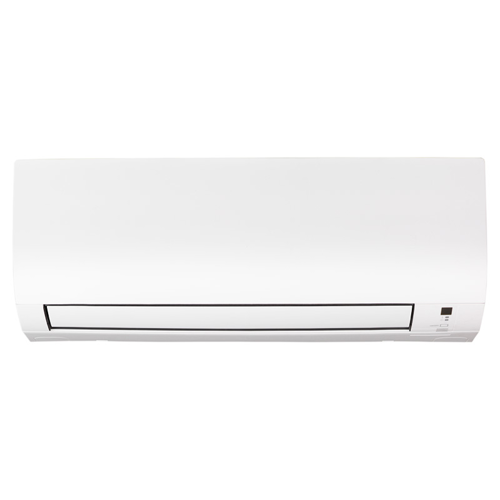

Daikin Air Conditioner FTXP20M5V1B

NOTICE! Do NOT use gasoline, benzene, thinner polishing powder or liquid insecticide. Possible consequence: Discoloration and deformation

Do NOT use water or air of 40°C or higher. Possible consequence: Discoloration and deformation

Do NOT use a scrubbing brush. Possible consequence: The surface finishing peels off

DANGER: RISK OF ELECTROCUTION. Before cleaning, be sure to stop the operation, turn the breaker off or pull out the supply cord. Otherwise, an electric shock and injury may result

Did you stop the operation, turn the breaker off or pull out the supply cord before cleaning?

Did you clean with a soft cloth?

Was it difficult to remove stains?

If yes, did you use water or a neutral detergent?

Remove the tabs on the filter frame

Replace the filter with a new one

Do NOT throw away the filter frame, but use it again

Dispose of the old filter as non-flammable waste

Remove the filter from the tabs

NOTE! Dispose of the old filter as non-flammable waste

Sign off on the filter replacement

Remove the titanium apatite deodorizing and silver particle filters from the tabs

Remove the dust from the filter with a vacuum cleaner

Soak the filter for 10 to 15 minutes in warm water

Do NOT remove the filter from the frame

After washing, shake off remaining water and dry the filter in the shade

Do NOT wring out the filter when removing water

Sign off on the filter cleaning

Push the tab at the centre of each air filter, then pull it down

Remove the titanium apatite deodorizing filter and silver particle filter from the tabs

Wash the air filters with water or clean them with a vacuum cleaner

Soak in lukewarm water for about 10 to 15 minutes

If the dust does NOT come off easily, wash the air filters with a neutral detergent diluted in lukewarm water. Dry the air filters in the shade

Be sure to remove the titanium apatite deodorizing and silver particle filters

Sign off on the air filter cleaning
