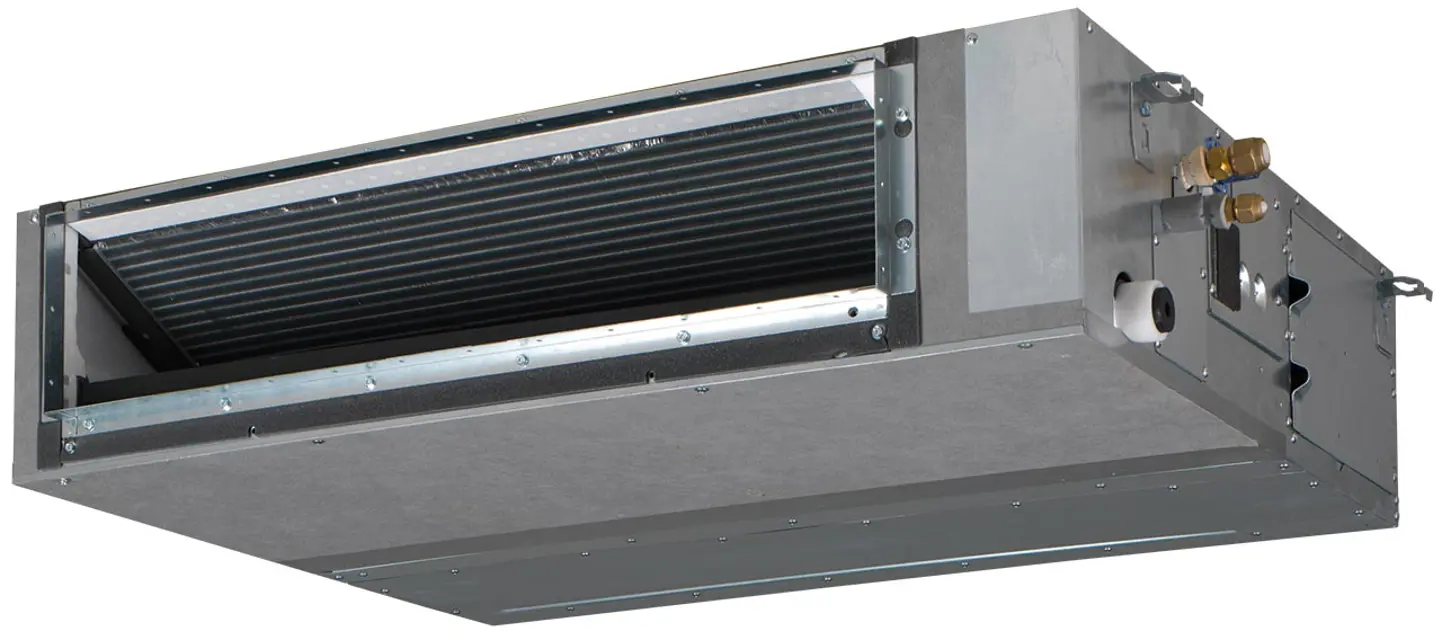

Daikin Air Conditioner FBA50A2VEB9

Create an account to install this asset package.

Maintenance Plans for Daikin Air Conditioner Model FBA50A2VEB9

Integrate maintenance plans directly into your work orders in MaintainX.

1 Yearly Air Conditioner Service

Safety Precautions

Do NOT pierce or burn refrigerant cycle parts

Do NOT use cleaning materials or means to accelerate the defrosting process other than those recommended by the manufacturer

Be aware that the refrigerant inside the system is odourless

Maintenance MUST be done by an authorized installer or service agent

We recommend performing maintenance at least once a year. However, applicable legislation might require shorter maintenance intervals

CAUTION: Before accessing terminal devices, make sure to interrupt all power supply

DANGER: RISK OF ELECTROCUTION: To clean the air conditioner or air filter, be sure to stop operation and turn all power supplies off. Otherwise, an electric shock and injury may result

WARNING: To prevent electric shocks or fire: • Do NOT rinse the unit • Do NOT operate the unit with wet hands • Do NOT place any objects containing water on the unit

Run this procedure

6 Monthly Air Conditioner Cleaning

- Clean the drain pan so that it does NOT become clogged and dusty

- Clean the air outlet and outside panels

WARNING:

Do NOT let the indoor unit get wet. Possible consequence: Electric shock or fire

NOTICE:

• Do NOT use gasoline, benzene, thinner polishing powder or liquid insecticide. Possible consequence: Discoloration and deformation

• Do NOT use water or air of 50°C or higher. Possible consequence: Discoloration and deformation

• Do NOT scrub firmly when washing the blade with water. Possible consequence: The surface sealing peels off

- Clean the air outlet and outside panels with a soft cloth. If it is difficult to remove stains, use water or neutral detergent

Run this procedure

Air Conditioner Maintenance

- Maintain before a long stop period

E.g., at the end of the season

1. Let the indoor units run in fan only operation for about half a day in order to dry the interior of the units

2. Turn off the power. The user interface display disappears. When the main power is turned on, the air conditioner will use some power, even if it is not operating

3. Clean air filters and casings of indoor units. Contact your installer or maintenance person to clean air filters and casings of the indoor unit. Maintenance tips and procedures for cleaning are provided in the installation/operation manuals of dedicated indoor units. Make sure to install cleaned air filters back in the same position

- Maintain after a long stop period

E.g., at the beginning of the season

1. Check and remove everything that might be blocking inlet and outlet vents of indoor units and outdoor units

2. Check if the earth is connected properly

Run this procedure
