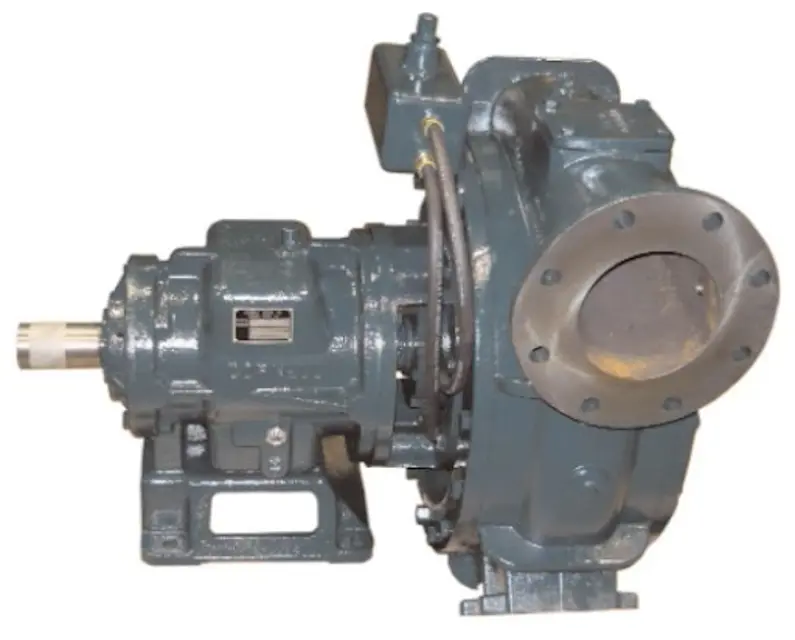

Cornell Pump Company Pump 12NHTM

3200-326 Startup Checklist — Instructions for Pumps with Balance Line and Wear Rings

Check wear rings for damage or excessive wear

Inspect balance lines for obstructions

Ensure balance lines are not pinched, bent, or corroded

Replace balance lines if necessary

3200-632 Maintenance — Instructions for Mechanical Seal

Is the leakage reducing to almost zero?

Examine the assembly for proper seal installation if leakage persists

Ensure the pump is not run dry unless equipped with Run-Dry option

3200-625 Run-Dry Seal Instructions and Parts Page

Purge air from upper circulation hose

Check for water accumulation in the reservoir

Check fluid level depletion rate

Indicate potential mechanical seal failure

Ensure the pump is not operating before starting the oil change.

Check the serial number plate for a 'K' to confirm oil lubrication.

Remove the pipe plug at the bottom of the housing to drain old oil.

Ensure all old oil has been completely drained.

Measure 2 quarts of turbine oil (ISO VG32 or ISO VG68 depending on temperature).

3200-902 Lubrication Instructions — Oil Lubricated Frame Pumps

Ensure all lip seals are present in the bearing covers

Locate grease fittings in the bearing cover at both ends of the frame

Apply a small amount of multiple-purpose grease to each grease fitting

Was the lubrication completed successfully?
