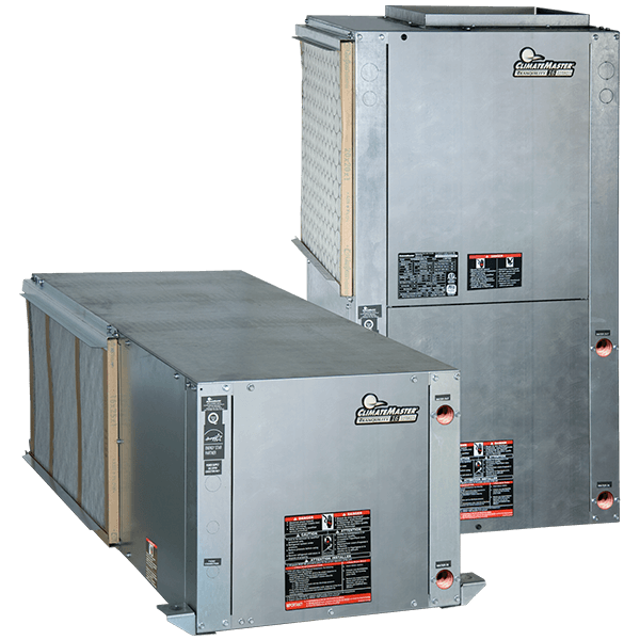

Climate Master Heat Pump TCV009AGC30APBS

CAUTION! Ensure that electrical power to the unit is disconnected.

Is the system installed with the supply hose connected directly to the return riser valve?

Is the system filled with water without overflow?

Is all air bled from the system?

Is the drain at the lowest point in the system open?

CAUTION: Fin edges are sharp. Handle with care.

Check the air coil for dirt. If dirty, proceed to next step.

Brush or vacuum clean the air coil. Be careful not to damage the aluminum fins.

Sign off on the air coil cleaning

Warning: Only trained personnel should perform this check

If dry operation is suspected, report to the maintenance team immediately

Enter the amp draw from the serial plate data

Enter the actual amp draw from the motor

If the actual amp draw is more than 10% greater than the serial plate data, report to the maintenance team immediately

Sign off on the fan motors dry operation and amperage check

Upon receipt of the equipment, carefully check the shipment against the bill of lading.

Packaging of each unit inspected?

Each unit inspected for damage?

Ensure that the carrier makes proper notation of any shortages or damage on all copies of the freight bill and completes a common carrier inspection report.

Concealed damage not discovered during unloading must be reported to the carrier within 15 days of receipt of shipment. If not filed within 15 days, the freight company can deny the claim without recourse.

Date of reporting concealed damage

NOTE: It is the responsibility of the purchaser to file all necessary claims with the carrier. Notify your equipment supplier of all damage within fifteen (15) days of shipment.

Direct ground water applications only

If the system is installed in an area with a known high mineral content (125 P.P.M. or greater) in the water, it is best to establish a periodic maintenance schedule with the owner so the coil can be checked regularly.

Consult the well water applications section of this manual for a more detailed water coil material selection.

Generally, the more water flowing through the unit, the less chance for scaling. Therefore, 1.5 gpm per ton [1.6 l/m per kW] is recommended as a minimum flow. Minimum flow rate for entering water temperatures below 50°F [10°C] is 2.0 gpm per ton [2.2 l/m per kW].

All other water loop applications

Generally water coil maintenance is not needed for closed loop systems. However, if the piping is known to have high dirt or debris content, it is best to establish a periodic maintenance schedule with the owner so the water coil can be checked regularly.

Dirty installations are typically the result of deterioration of iron or galvanized piping or components in the system.

Open cooling towers requiring heavy chemical treatment and mineral buildup through water use can also contribute to higher maintenance.
