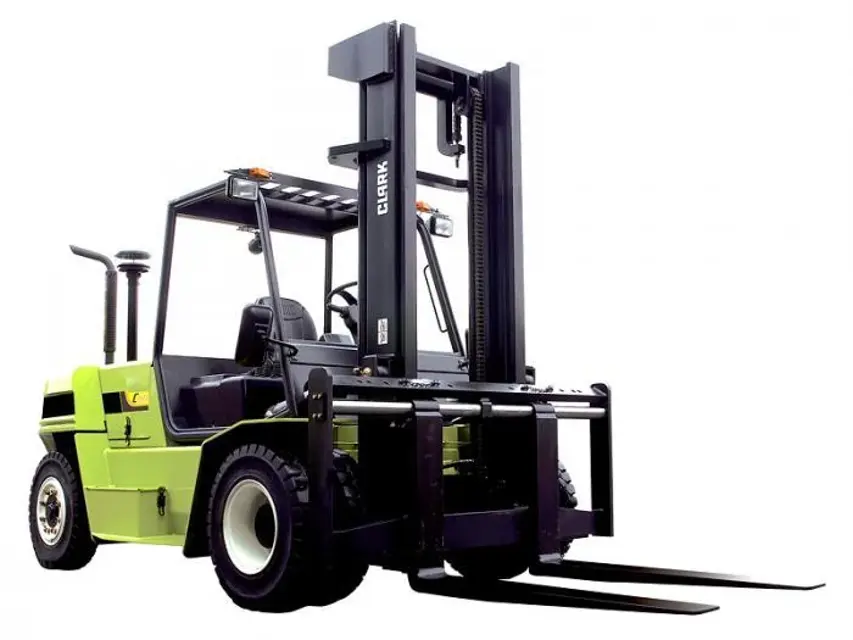

Clark Forklift C75L

Check truck for obvious damage and leaks

Check fuel system for leaks, etc

Check capacity, warning plates and decals

Check condition of tires and wheels. Remove embedded objects. Check air pressure

Check for missing or loose wheel lugs nuts

Check engine coolant level (radiator and recovery tank)

Clean and replace Diesel engine air filter

Change Diesel fuel filter (DEUTZ)

Check drive axle mounting and fasteners

Change / replace hydraulic sump oil filter and breather

Sign off on the forklift maintenance

Warning: Do not attempt to repair a worn chain. Replace worn or damaged chains. Do not piece chains together.

Inspect and lubricate the lift chains every PM (50-250 hours). When operating in corrosive environments, inspect the chains every 50 hours.

Check for raised or turned pins

Check for wear, and worn pins or holes

When the pins or holes become worn, the chain becomes longer. When a section of chain is 3% longer than a section of new chain, the chain is worn and must be discarded.

Ensure the travel area is clear in front of the truck.

Push firmly on the brake pedal. Release the parking brake. Move the directional control lever from NEUTRAL to FORWARD.

Remove your right foot from the service brake pedal and put it on the accelerator pedal. Push down until the truck moves slowly forward. Remove your foot from the accelerator pedal and push down on the service brake pedal to stop the truck. The brakes should apply smoothly and equally.

Ensure the travel area is clear behind the truck.

Put the directional control lever in the REVERSE travel position. Release the service brake and push down on the accelerator pedal until the truck moves slowly in the reverse direction. Remove your foot from the accelerator pedal and push down on the service brake pedal to stop the truck. The brakes should apply smoothly and equally.

Put the directional control in FORWARD. Press the inching pedal fully down and hold. Depress the accelerator. The truck should not move. Now, with the accelerator still depressed, slowly release the inching pedal until the truck inches forward smoothly and slowly.

When you have completed the operational tests, park and leave the truck according to standard shut down procedure as described in Section 4 of this manual. Be sure to make a record of all maintenance and operating problems you find.

WARNING! Do not remove the radiator cap when the radiator is hot. STEAM from the radiator will cause severe burns. Do not remove the radiator cap to check the coolant level.

WARNING! Never remove the radiator cap while the engine is running. Stop the engine and wait until it has cooled. Failure to do so could result in serious personal injury from hot coolant or steam blowout and/or damage to the cooling system or engine.

NOTICE! Your lift truck cooling system is filled with a factory-installed solution of 50% water and 50% permanent type antifreeze containing rust and corrosion inhibitors. You should leave the solution in year around. Plain water may be used in an emergency, but replace it with the specified coolant as soon as possible to avoid damage to the system. Do not use alcohol or methanol antifreeze.

Engine coolant level between the HOT and COLD marks

Coolant level in the overflow bottle only

Engine oil free of coolant leakage

Coolant free of excessive contamination, rust or oil

PM time interval for coolant change

Radiator cap rubber seal and radiator filler neck free of damage and clean
