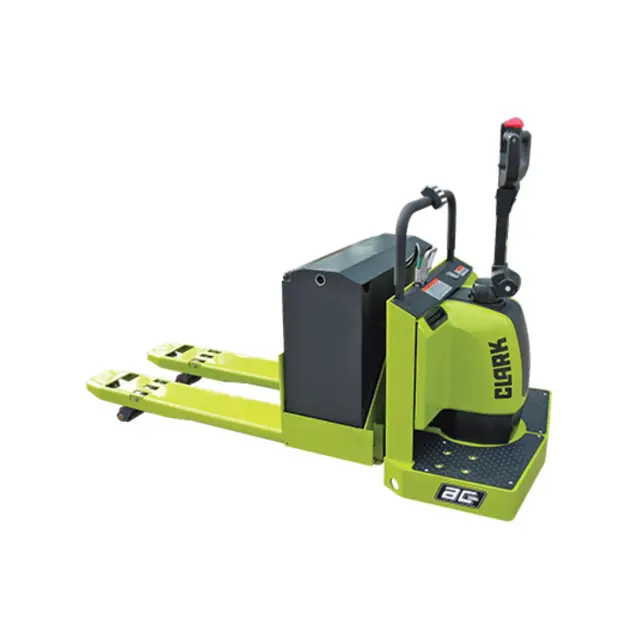

Clark Electric Pallet Jack Forklift HPC60

1. Drain, Flush, & Refill Hydraulic Reservoir. Use SAE- 40 W Motor Oil.

* Fill to 1" below the opening with forks fully.

2. Clean in Solvent Hydraulic Reservoir Inlet Screen Inside of Reservoir.

Charge, service, and clean battery

Inspect visually for damage or leakage

Inspect visually for loose or missing parts

Inspect visually for foreign material in the fork mechanism

Check electrical interlock (brake switch) operation

Check for smooth and proper functioning of all controls

Hydraulic fluid is within 1 inch of fill opening with fork lowered

Transmission lubricant is at the correct level

Battery water level is at the correct level

Monthly service all grease fittings

Signature of person completing the check

• This brake is electrically released and (spring) mechanically applied.

• It is to be repaired and adjusted only by a mechanic trained in its maintenance.

• This switch is located in the side of the handle. It controls the travel direction of the truck.

• This switch is not adjustable and if defective must be repaired or replaced.

• The commutator should be checked for dirt, wear, or damage.

• Clean, repair, or replace as required.;

Warning: This procedure requires trained personnel with PPE!

Drain, Flush and Refill completed?

Were there dust or moisture operating conditions?

Sign off on the oil replacement
