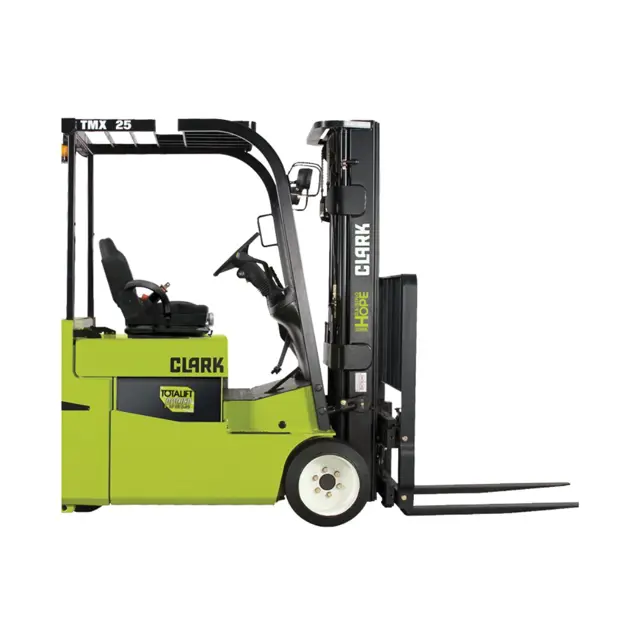

Clark Electric Rider Lift Trucks TMX 25

- Fasteners in highly loaded (critical) components can quickly fail if they become loosened. Also, loose fasteners can cause damage or failure of the component.

- For safety, it is important that the correct torque be maintained on all critical fasteners of components that directly support, handle, or control the load and protect the operator.

Check critical items, including:

• Drive and steer wheel mounting

• Tilt cylinder mounting and yokes

Service and parking brakes operate freely and return to neutral properly

All hydraulic controls operate freely and return to neutral properly

Lift, tilt, and auxiliary (if installed) operate freely and return to neutral properly

Accelerator operates freely and return to neutral properly

Directional controls operate freely and return to neutral properly

Steering system operates freely and return to neutral properly

Service brake system is functioning properly

Brake pedal feels firm and does not move down farther after it stops

Parking brake releases and reapplies properly

Check drive axle mounting and fasteners

Clean/replace hydraulic sump breather

Sign off on the lift truck maintenance

Check the condition of the load backrest.

Inspect the welds on the load backrest and carriage.

Check that the mounting fasteners are not missing and properly tightened.

If the load backrest has been removed, make sure that fork stops have been installed on each side of the carriage.

CAUTION! If the truck is not equipped with a load backrest, or it has been removed, then fork stops must be installed on each side of the carriage to prevent the forks from being unintentionally forced off of the carriage during operation.

Sign off on the load backrest check

Warning: This maintenance task requires trained personnel with PPE!

Enter the current hour meter reading of the lift

Select the type of lubricant used

Was the lubrication process successful?

Sign off on the lift chain lubrication
