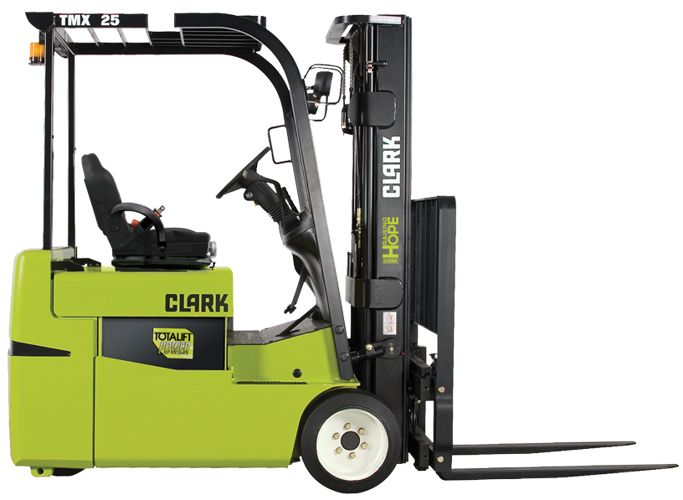

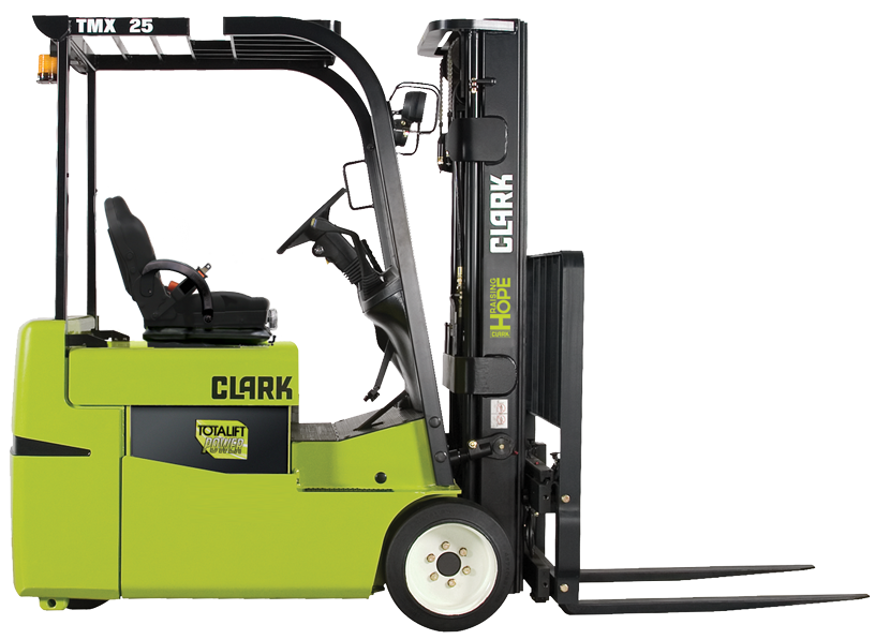

Clark Electric Rider Lift Trucks TMX 17

• Check up the damage of cables and terminal at every scheduled PM (500 hrs)

• During inspection, check the following cable condition

- Terminal for loosing or corrosion

- Insulation for hardening and cracking

• Do not repair cable by cutting out the damaged section and splicing.

• Replace the entire cable of traction and pump motors should be replaced with new cables having over 194F (90C). Inquire the cable at an authorized CLARK service agency.;

Check truck visually and inspect components

Test drive truck/check functional performance

Check torque on critical fasteners

Clean/check battery terminals, electrolyte level

Check battery cables/truck receptacle

Check the condition of the load backrest

Inspect the welds on the load backrest and carriage

Check that the mounting fasteners are not missing and properly tightened

If the load backrest has been removed, make sure that fork stops have been installed on each side of the carriage

CAUTION! If the truck is not equipped with a load backrest, or it has been removed, then fork stops must be installed on each side of the carriage to prevent the forks from being unintentionally forced off of the carriage during operation.

Sign off on the load backrest check

Warning: This inspection requires trained personnel with PPE!

Inspect the load forks for cracks, breaks, bending and wear. The fork top surfaces should be level and even with each other. The height difference between both fork tips should be no more than 1.5% of the blade length.

WARNING! If the fork blade heel is worn down by more than 10 percents, the load capacity is reduced and the fork must be replaced.

Inspect the forks for twists and bends. Put a 2\ thick metal block

If the fork blades are obviously bent or damaged, have them inspected by a trained maintenance person before operating the truck.

Inspect the fork locating pins. Be sure they are not damaged or broken and operate freely and lock correctly. Check the fork stop pins for secure condition.

Sign off on the fork inspection

Service and parking brakes operation

Lift, tilt, and auxiliary controls operation
