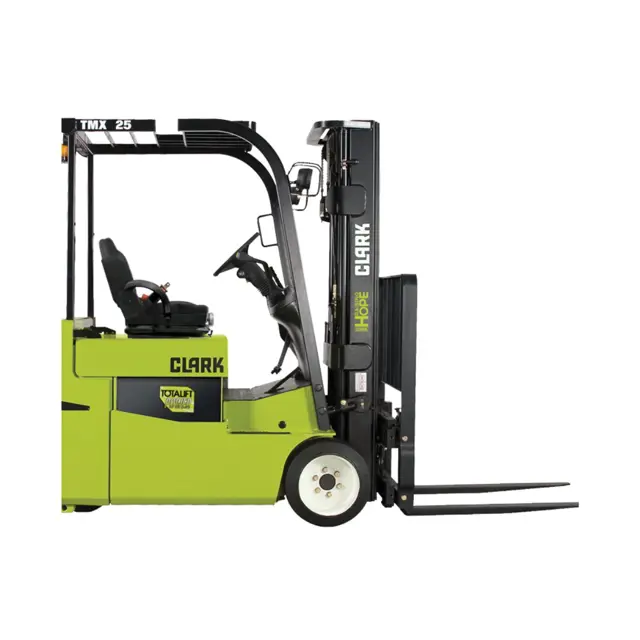

Clark Electric Rider Lift Trucks TMX 15s

Warning: Do not attempt to repair a worn chain. Lift chain repairs and adjustments should be made by trained service personnel.

Inspect and lubricate the lift chains every PM (50-250 hours). When operating in corrosive environments, inspect the chains every 50 hours.

Check for corrosion, cracked plates, raised or turned pins, tight joints, wear, and worn pins or holes.

Measure a segment of chain that moves over a sheave. Enter the length of the chain.

Is the chain 3% longer than a section of new chain?

If part of a chain is worn, replace all the chains on a truck.

All chains must be replaced if any link has wear of 3% or more, or if any of the damaged conditions noted above are found during inspection.

Replace all chains as a set. Do not remove factory lubrication or paint new chains. Replace anchor pins and worn or broken anchors when installing new chains. Adjust tension on new chains. Lubricate chains when they are installed on the upright.

Sign off on the lift chain maintenance

Always maintain a lift truck in a clean condition. Do not allow dirt, dust, lint, or other contaminants to accumulate on the truck.

Is the truck free from leaking oil and grease?

Are the controls and floorboards clean, dry, and safe?

The environment in which a lift truck operates determines how often and to what extent cleaning is necessary.

Is the truck operating in a high level of dirt, dust, or lint environment?

IMPORTANT! Do not steam, Pressure wash, or use liquid spray cleaner on Electronic control panel.

Is the lift truck air cleaned at every PM interval?

Use an air hose with special adapter or extension having a control valve and nozzle to direct the air properly.

Enter the air pressure used for cleaning

• Inspect the upright assembly: rails, carriage rollers, lift chains, and lift and tilt cylinders.

• Look for obvious wear and maintenance problems, damaged or missing parts.

IMPORTANT! Make sure that no structural members have developed any cracks.

• Check for any loose parts or fittings.

• Check for leaks, any damaged or loose rollers, and rail wear (metal flaking). Inspect all lift line hydraulic connections for leaks.;

• Keep a record of battery service and maintenance to obtain the best service life from your battery and truck. Select a pilot cell, take readings of specific gravity and temperature before and after charging, and record the readings with the date.

• It is best to change the location of the pilot cell occasionally to distribute any electrolyte loss over the battery.

• Every 2 or 3 months, take complete battery readings (specific gravity, temperature, and voltage) and make a record of them.;

Travel area is clear in front of the truck

Direction control lever moved from NEUTRAL to FORWARD travel position

Truck moves slowly forward when accelerator pedal is pushed down

Brakes apply smoothly and equally when stopping the truck from moving forward

Travel area is clear behind the truck

Direction control lever put in the REVERSE travel position

Truck moves slowly in reverse when accelerator pedal is pushed down
