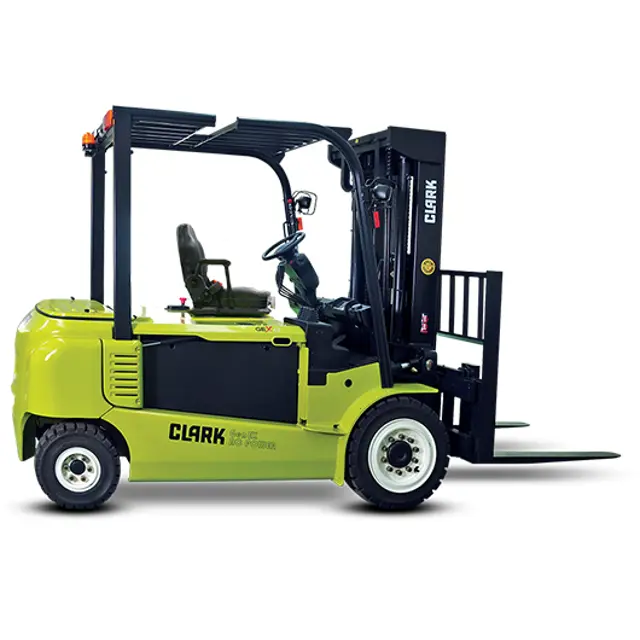

Clark Electric Rider Lift Trucks GEX 18

Warning: This maintenance task requires trained personnel with PPE!

Enter the current hour meter reading of the lift

Select the type of lubricant used

Was the lubrication process successful?

Sign off on the lift chain lubrication

Travel area is clear in front of the truck

Direction control lever moved from NEUTRAL to FORWARD travel position

Right foot removed from the brake pedal and put on the accelerator pedal

Truck moves slowly forward when accelerator pedal is pushed down

Brakes apply smoothly and equally when foot is removed from the accelerator pedal and pushed down on the brake pedal

Travel area is clear behind the truck

Directional control lever put in the REVERSE travel position

Warning: This inspection requires trained personnel with PPE!

Inspect the load forks for cracks, breaks, bending and wear. The fork top surfaces should be level and even with each other. The height difference between both fork tips should be no more than 1.5% of the blade length.

WARNING! If the fork blade heel is worn down by more than 10 percents, the load capacity is reduced and the fork must be replaced.

Inspect the forks for twists and bends. Put a 2\ thick metal block

If the fork blades are obviously bent or damaged, have them inspected by a trained maintenance person before operating the truck.

Inspect the fork locating pins. Be sure they are not damaged or broken and operate freely and lock correctly. Check the fork stop pins for secure condition.

Sign off on the fork inspection

NOTICE! The steering system, steer axle, and steering linkage on your truck should be inspected periodically for abnormal looseness and damage, leaking seals, etc. Also, be alert for any changes in steering action. Hard steering, excessive free play (looseness), or unusual sound when turning or maneuvering indicates a need for inspection or servicing.

Check the steering system by moving the steering handwheel in a full right turn and then in a full left turn.

Return the handwheel (steer wheels) to the straight ahead position.

The steering system components should operate smoothly when the steering wheel is turned.

IMPORTANT! Never operate a truck with a malfunctioning steering system.

Sign off on the steering system check

Always maintain a lift truck in a clean condition. Do not allow dirt, dust, lint, or other contaminants to accumulate on the truck.

Is the truck free from leaking oil and grease?

Are the controls and floorboards clean, dry, and safe?

The environment in which a lift truck operates determines how often and to what extent cleaning is necessary.

Is the truck operating in a high level of dirt, dust, or lint environment?

IMPORTANT! Do not steam, Pressure wash, or use liquid spray cleaner on Electronic control panel.

Is the lift truck air cleaned at every PM interval?

Use an air hose with special adapter or extension having a control valve and nozzle to direct the air properly.

Enter the air pressure used for cleaning
