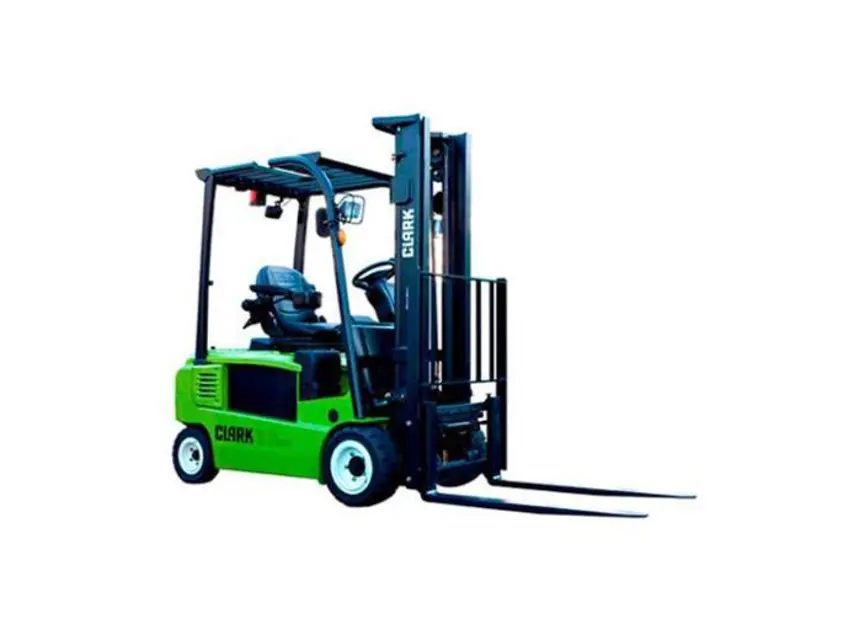

Clark Electric Rider Lift Trucks GEX 16

NOTICE! The steering system, steer axle, and steering linkage on your truck should be inspected periodically for abnormal looseness and damage, leaking seals, etc. Also, be alert for any changes in steering action. Hard steering, excessive free play (looseness), or unusual sound when turning or maneuvering indicates a need for inspection or servicing.

Check the steering system by moving the steering handwheel in a full right turn and then in a full left turn.

Return the handwheel (steer wheels) to the straight ahead position.

The steering system components should operate smoothly when the steering wheel is turned.

IMPORTANT! Never operate a truck with a malfunctioning steering system.

Sign off on the steering system check

Check the condition of the load backrest.

Inspect the welds on the load backrest and carriage.

Check that the mounting fasteners are not missing and properly tightened.

If the load backrest has been removed, make sure that fork stops have been installed on each side of the carriage.

CAUTION! If the truck is not equipped with a load backrest, or it has been removed, then fork stops must be installed on each side of the carriage to prevent the forks from being unintentionally forced off of the carriage during operation.

Sign off on the load backrest check

Check the overhead guard for damage

Ensure that the overhead guard is properly positioned

Check if all mounting fasteners are in place and tight

Make sure no cracks have developed

Sign off on the overhead guard check

All controls and systems are functioning correctly

Lights are functioning correctly

All other safety equipment and accessories are properly mounted and working correctly

Sign off on the lift truck functional test

Check truck for obvious damage and leaks

Check capacity, warning plates and decals

Check condition of tires and wheels, remove embedded objects

Check warning lights and hour meter
