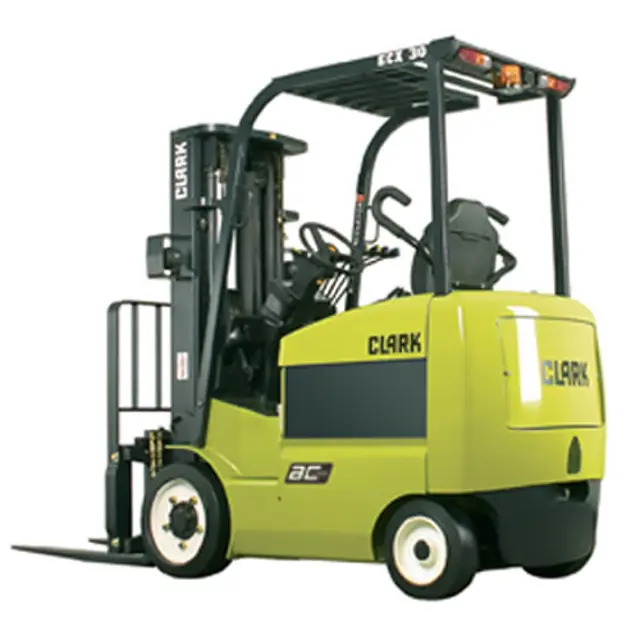

Clark Electric Rider Lift Trucks ECX 32

Check drive axle mounting and fasteners

Clean/replace hydraulic sump breather

Sign off on the lift truck maintenance

Begin the PM routine with a visual inspection of the lift truck and its components.

Walk around the truck and take note of any obvious damage and maintenance problems. Check for loose fasteners and fittings.

Check to be sure all capacity, safety, and warning plates or decals are attached and legible.

NOTICE! NAMEPLATES AND DECALS: Do not operate a lift truck with damaged or lost decals and nameplates. Replace them immediately. They contain important information.

Inspect the truck for any sign of external leakage: transmission fluid, brake oil, electrolyte, etc.

Check for hydraulic oil leaks and loose fittings.

CAUTION! HYDRAULIC FLUID PRESSURE: Do not use your hands to check for hydraulic leakage. Fluid under pressure can penetrate your skin and cause serious injury.

Be sure that the driver's overhead guard, load backrest extension, and safety devices are in place, undamaged, and attached securely.

Then check all of the critical components that handle or carry the load.

- Fasteners in highly loaded (critical) components can quickly fail if they become loosened. Also, loose fasteners can cause damage or failure of the component.

- For safety, it is important that the correct torque be maintained on all critical fasteners of components that directly support, handle, or control the load and protect the operator.

Check critical items, including:

• Drive and steer wheel mounting

• Tilt cylinder mounting and yokes

All controls and systems are functioning correctly

Lights are functioning correctly

All other safety equipment and accessories are properly mounted and working correctly

Sign off on the lift truck functional test

Warning: This check requires trained personnel with PPE!

Is the truck parked on a level surface with the parking brake applied?

Is the upright in a vertical position and the fork carriage fully lowered?

Enter the hydraulic sump tank fluid level

Is the fluid level above the LOW mark on the dipstick?

Is the hydraulic fluid free of contamination?

Describe the condition of the hydraulic fluid (age, color or clarity, contamination)

Sign off on the hydraulic fluid check
