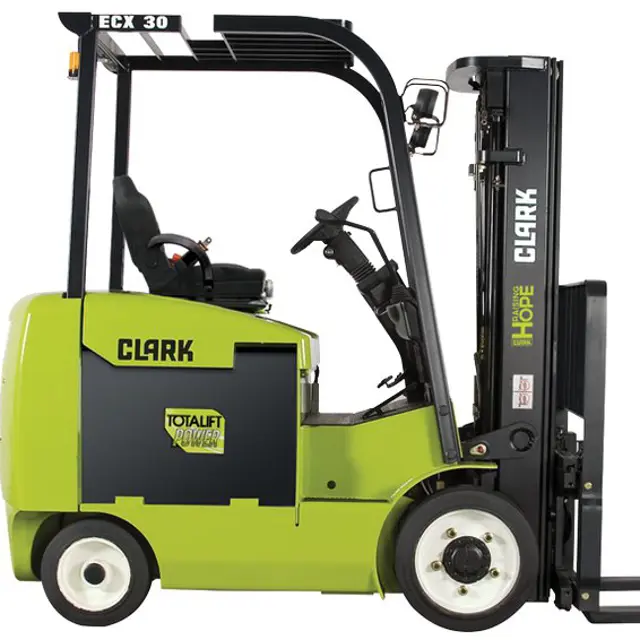

Clark Electric Rider Lift Trucks ECX 30

Travel area is clear in front of the truck

Direction control lever moved from NEUTRAL to FORWARD travel position

Truck moves slowly forward when accelerator pedal is pushed down

Brakes apply smoothly and equally when brake pedal is pushed down

Travel area is clear behind the truck

Direction control lever is in the REVERSE travel position

Truck moves slowly in reverse when accelerator pedal is pushed down

Inspect the load forks for cracks, breaks, bending and wear. The fork top surfaces should be level and even with each other. The height difference between both fork tips should be no more than 1.5% of the blade length.

WARNING! If the fork blade heel is worn down by more than 10 percents, the load capacity is reduced and the fork must be replaced.

Inspect the forks for twists and bends. Put a 2\ thick metal block

If the fork blades are obviously bent or damaged, have them inspected by a trained maintenance person before operating the truck.

Inspect the fork locating pins. Be sure they are not damaged or broken and operate freely and lock correctly. Check the fork stop pins for secure condition.

Sign off on the fork inspection

Check drive axle mounting and fasteners

Clean/replace hydraulic sump breather

Sign off on the lift truck maintenance

Service and parking brakes operation

All hydraulic controls operation

Lift, tilt, and auxiliary (if installed) operation

NOTICE! The steering system, steer axle, and steering linkage on your truck should be inspected periodically for abnormal looseness and damage, leaking seals, etc. Also, be alert for any changes in steering action. Hard steering, excessive free play (looseness), or unusual sound when turning or maneuvering indicates a need for inspection or servicing.

Check the steering system by moving the steering handwheel in a full right turn and then in a full left turn.

Return the handwheel (steer wheels) to the straight ahead position.

The steering system components should operate smoothly when the steering wheel is turned.

IMPORTANT! Never operate a truck with a malfunctioning steering system.

Sign off on the steering system check
