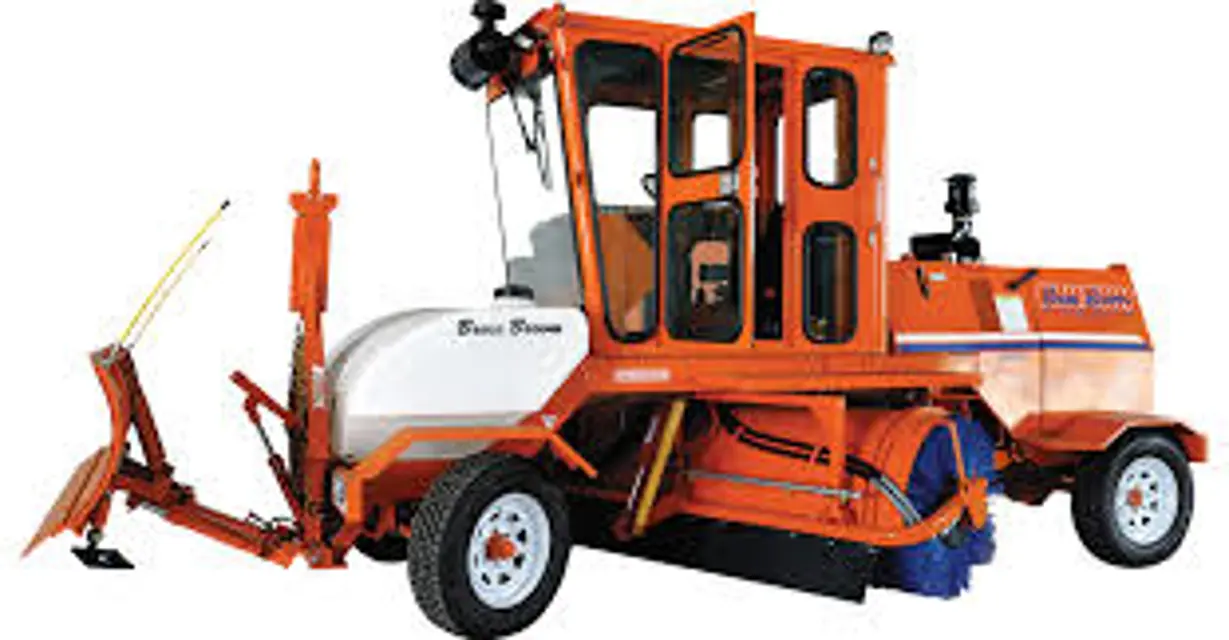

Broce Manufacturing Road Construction Sweeper RCT350

A well maintained A/C system would save on downtime and premature component failures.

Weekly inspections or every 2 days in severe environments should include:

Inspect compressor clutch drive belts (tightness, wear)

Inspect compressor-mounting brackets (bolts, alignment)

Inspect mounting hardware on evaporator unit and condensers

Inspect air intake filter. Clean or replace filter

Inspect evaporator and condenser coils. Clean using air pressure. (DO NOT USE WATER OR PRESSURE WASHER)

Inspect hose and wire harness for proper routing. Leaks and wear

Sign off on the air conditioner preventive maintenance

Warning: Do not operate the machine with faulty brakes. This will put the operation in extreme danger and could cause bodily injury and property damage.

If the pedal feels 'spongy', there may be air in one or more of the brake lines and must be serviced prior to operating this machine.

Check the fluid level in the master cylinder.

Inspect brake lines for leaks and/or damage.

Replace front and rear brake hoses.

Inspect mechanical parking brake linkage for proper adjustment, routing and/or damage.

Sign off on the brake inspection

Caution: Do not attempt to clean the radiator or heat exchanger while the engine is running. If hands or equipment come in contact with spinning fan blades, serious injury will result. Engine must be completely stopped.

Due to the dusty conditions in which this machine operates, the heat exchanger and radiator must be cleaned every 4 to 8 hours of service, depending upon sweeping conditions. If either one becomes clogged with dirt, it will overload the cooling capacity of the other, causing both the engine and hydraulic system to operate at higher than acceptable temperatures. Use water or compressed air directed from the engine side of the radiator to remove dirt build up.

Heat exchanger and radiator cleaned?

Dirt build up removed from the engine side of the radiator?

Radiator and heat exchanger inspected for dirt deposits and/or damage?

Sign off on the radiator and heat exchanger cleaning

Warning: The air cleaner is one of the most important components of this machine. Due to the extremely dusty conditions in which this machine operates, the air cleaner must be maintained constantly. If the air cleaner is not serviced properly, the machine’s engine life will be reduced.

This machine is equipped with a dry type air cleaner, bowl type pre-cleaner, and a restriction type service indicator as standard equipment.

Under normal conditions, the air cleaner will need to be serviced every three to four hours. When the clear ring on the Service Indicator turns red, the air cleaner must be serviced immediately.

If the machine is equipped with a dual element air cleaner, DO NOT remove the safety element until you are ready to replace it!

DO NOT attempt to clean the safety element! It is strictly a disposable type element.

Caution: When using compressed air, clear the area of bystanders, guard against flying debris, and wear personal protection equipment including eye protection.

Sign off on the air cleaner maintenance

If storing the Broce Broom for more than 30 days:

2. Charge battery and disconnect terminal leads.

3. Fill fuel tank and add fuel stabilizer.

4. Add small amount of oil into cylinders and crank engine a few times.

5. Grease all pivot pins and perform standard lubrication procedures.

6. Apply grease to all exposed cylinder rods.
