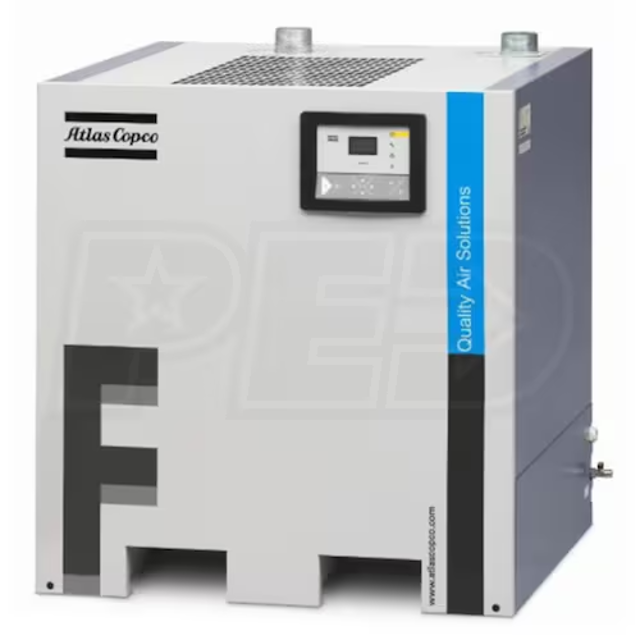

Atlas Copco Refrigerant Сompressed Air Dryer FD220

Finned surface of condenser brushed or blown off?

Differential pressure indicators checked?

Pressure gauge on the control panel checked?

If the oil can is filled with oil, take the can out of the bracket and deliver the oil to the local oil collection service.

Enter the operating hours of the machine

Change oil separator every 6000 operating hours or when pressure gauge on the control panel reaches a pressure differential of 2 bar (29 psi).

Warning: This maintenance check requires trained personnel with PPE!

Installation checked by an authorized control body?

Electronic condensate drain inspected and cleaned?

Enter the pressure drop indicated by the differential pressure indicators on top of the filter

Sign off on the maintenance check
