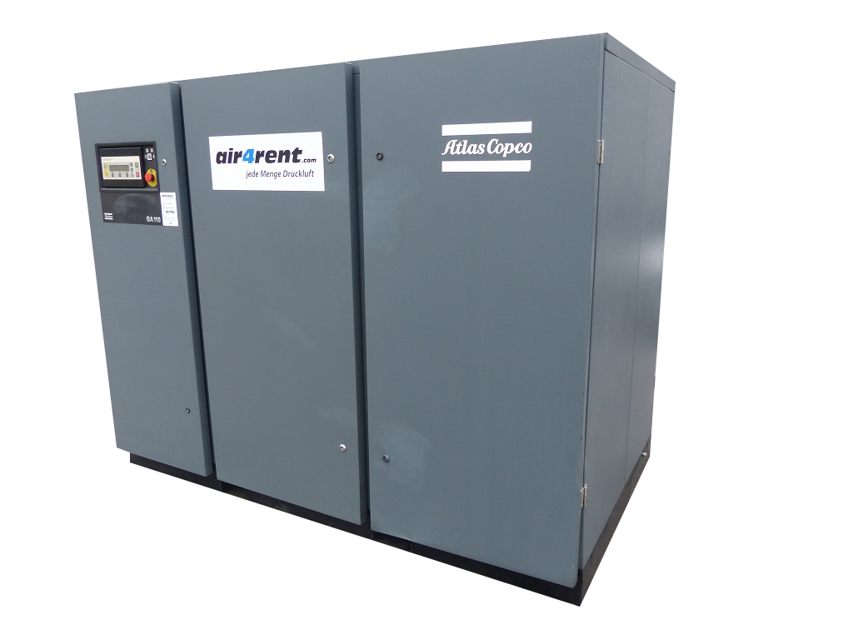

Atlas Copco Oil Injected Rotary Screw Compressor GA110FF

WARNING! Stop the compressor, press the emergency stop button and switch off the voltage

The operator must apply all relevant Safety precautions

Unscrew bolts and rotate the fan away from the cooler block

Remove any dirt form the coolers with a fibre brush, brush in the direction of the fins

Also remove any dirt from the fans

Clean the coolers with an air jet in the reverse direction to normal flow

Use low pressure air, if necessary, the pressure may be increased up to 6 bar (e) (87 psig)

If it is necessary to clean the coolers with a cleaning agent, consult Atlas Copco

Grease ABB drive motor of 50Hz Compressor

Grease ABB drive motor of 60Hz Compressor

Grease WEG drive motor of 60Hz Compressor types GA 250 and GA 315 only

Grease WEG drive motor of 60Hz Compressor types GA 90, GA 110, GA 160 and GA 200 every 8000 Hours;

WARNING! Stop the compressor and switch off the voltage

The operator must apply all relevant Safety precautions

Never run the compressor without safety valves

The valve can be tested on a separate compressed air line

Consult the Atlas Copco Customer Centre if the valve does not open at the correct pressure

Inspect all flexibles every 1 Year

Did the safety valve open at the correct pressure?

Upload a photo of the tested safety valve

Warning: This maintenance check requires trained personnel with PPE!

If OSD is equipped, proceed with the following steps

Float valve of the condensate traps removed, dismantled and cleaned?

Air filter elements removed and inspected?

Sign off on the compressor maintenance

Check that condensate is discharged during loading

Check oil level. Before starting, the level should be in the middle of the sight-glass
