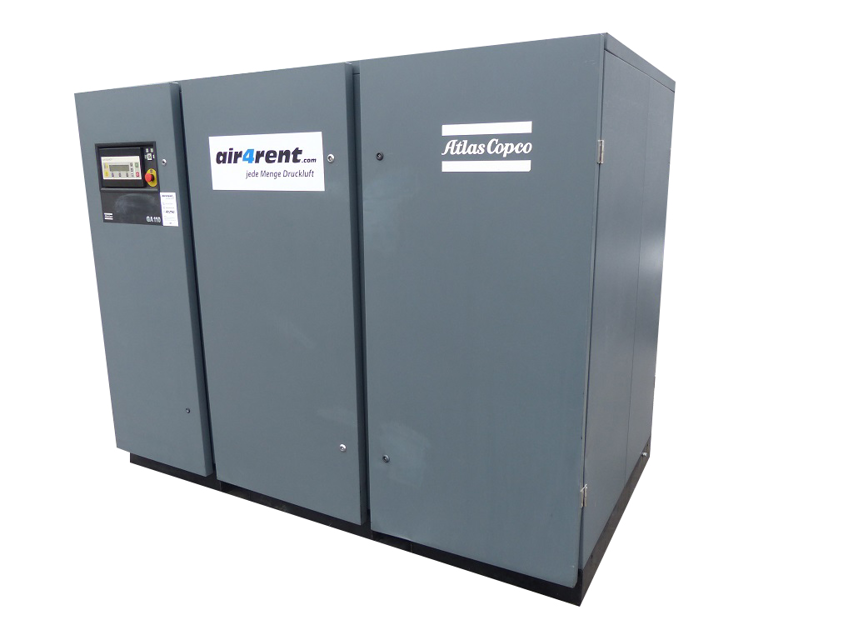

Atlas Copco Oil Injected Rotary Screw Compressor GA110-106

Create an account to install this asset package.

Maintenance Plans for Atlas Copco Oil Injected Rotary Screw Compressor Model GA110-106

Integrate maintenance plans directly into your work orders in MaintainX.

500 Hourly / 3 Monthly Cooler Cleaning

WARNING! Stop the compressor, press the emergency stop button and switch off the voltage

The operator must apply all relevant Safety precautions

Unscrew bolts and rotate the fan away from the cooler block

Remove any dirt form the coolers with a fibre brush, brush in the direction of the fins

Also remove any dirt from the fans

Clean the coolers with an air jet in the reverse direction to normal flow

Use low pressure air, if necessary, the pressure may be increased up to 6 bar (e) (87 psig)

If it is necessary to clean the coolers with a cleaning agent, consult Atlas Copco

Reposition and fix the fan

Run this procedure

8000 Hourly / 2 Yearly Roto-Xtend Duty Fluid Oil Change

Warning: This procedure requires trained personnel with PPE!

Is the compressor operating at ambient temperatures between 0 ̊C (32 ̊F) and 46 ̊C (115 ̊F)?

If not, adjust the ambient temperature before proceeding.

Run the compressor until warm.

Stop the compressor, close the air outlet valve and switch off the voltage.

Depressurise by unscrewing plug only one turn to permit any pressure in the system to escape.

Loosen the vent plugs on top of the oil coolers.

Drain the oil by removing the drain plugs.

Tighten the plugs after draining.

Run this procedure

Air Filter Element Repalcement

Remove the filter elements

Fit the new filter elements

Reset the message and service timer

Run this procedure

4000 Hourly / 1 Yearly Roto-Inject Fluid Oil Change

Roto-Inject Fluid is a high-quality lubricant for single-stage, oil-injected rotary screw compressors

Run the compressor until warm

Stop the compressor, close the air outlet valve and switch off the voltage

Wait a few minutes and depressurise by unscrewing plug only one turn to permit any pressure in the system to escape

Loosen the vent plugs on top of the oil coolers

Drain the oil by removing the drain plugs

Tighten the plugs after draining

Remove filler plug

Fill the air receiver with oil until the level reaches the filler opening

Run this procedure

25000 Hourly Motor Bearing Replacement

WARNING! Stop the compressor and switch off the voltage. The operator must apply all relevant Safety precautions

Never mix greases of different brands or types

The bearings of the fan motors are greased for life

The bearings of the fan motor must be replaced after 25000 operating hours

Compressor stopped and voltage switched off

Safety precautions applied

Correct grease used

Enter the current operating hours of the fan motor

Bearings replaced

Run this procedure

Parts for Atlas Copco Oil Injected Rotary Screw Compressor GA110-106

Access the parts list for your equipment in MaintainX.

Part Name

Part Number

Roto-Inject Fluid 20-Litre Can

2901 0522 00

Roto-Inject Fluid 209-Litre Drum

2901 0045 01

Roto-Xtend Duty Fluid 5-Litre Can

2901 1700 00

Roto-Xtend Duty Fluid 20-Litre Can

2901 1701 00

Roto-Xtend Duty Fluid 209-Litre Drum

2901 1702 00

Roto-Inject Fluid 20-Litre Can

2901 0522 00

Roto-Inject Fluid 209-Litre Drum

2901 0045 01

Roto-Xtend Duty Fluid 5-Litre Can

2901 1700 00

Roto-Xtend Duty Fluid 20-Litre Can

2901 1701 00

Roto-Xtend Duty Fluid 209-Litre Drum

2901 1702 00

Roto-Inject Fluid 20-Litre Can

2901 0522 00

Roto-Inject Fluid 209-Litre Drum

2901 0045 01

Roto-Xtend Duty Fluid 5-Litre Can

2901 1700 00

Roto-Xtend Duty Fluid 20-Litre Can

2901 1701 00

Roto-Xtend Duty Fluid 209-Litre Drum

2901 1702 00
