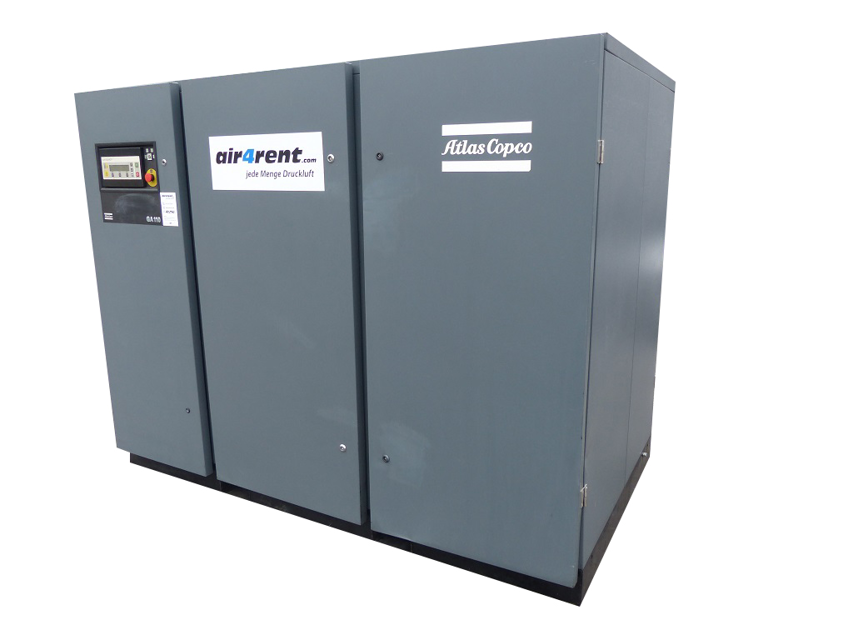

Atlas Copco Oil Injected Rotary Screw Compressor GA 160
Need answers fast?
Explore the manual using AI.
The Atlas Copco Oil Injected Rotary Screw Compressor GA 160 is a high-performance industrial compressor designed for reliable and efficient operation. With advanced technology and robust construction, this model ensures optimal air delivery and energy efficiency for various applications in manufacturing and processing industries.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Atlas Copco Oil Injected Rotary Screw Compressor GA 160
Create an account to install this asset package.
Maintenance Plans for Atlas Copco Oil Injected Rotary Screw Compressor Model GA 160
Integrate maintenance plans directly into your work orders in MaintainX.
1 Yearly Safety Valve Testing
WARNING! Stop the compressor and switch off the voltage
The operator must apply all relevant Safety precautions
Never run the compressor without safety valves
No adjustments are allowed
The valve can be tested on a separate compressed air line
Consult the Atlas Copco Customer Centre if the valve does not open at the correct pressure
Inspect all flexibles every 1 Year
Did the safety valve open at the correct pressure?
Upload a photo of the tested safety valve
25000 Hourly Motor Bearing Replacement
WARNING! Stop the compressor and switch off the voltage. The operator must apply all relevant Safety precautions
Never mix greases of different brands or types
The bearings of the fan motors are greased for life
The bearings of the fan motor must be replaced after 25000 operating hours
Compressor stopped and voltage switched off
Safety precautions applied
Greases of different brands or types not mixed
Bearings of the fan motor replaced
Sign off on the motor bearing replacement
3 Monthly Oil Injected Rotary Screw Compressor Maintenance
Warning: Always ensure the compressor is shut off and fully depressurized before starting any maintenance work.
OSD equipped?
If OSD is equipped, follow the steps below.
Float valve of the condensate traps removed, dismantled and cleaned?
Compressor cleaned?
Checked for possible leaks?
Air filter elements removed and inspected?
Sign off on the maintenance
4000 Hourly / 1 Yearly Oil Filter Replacement
WARNING! Stop the compressor and switch off the voltage. The operator must apply all relevant Safety precautions.
Compressor stopped and voltage switched off?
Air outlet valve closed?
Wait a few minutes and depressurise by unscrewing plug only one turn to permit any pressure in the system to escape.
Depressurised system?
Use an oil pan to avoid possible oil spillage.
Oil pan in place?
Unscrew oil filters only one turn and wait a few minutes to let the oil of the filter flow back into the oil separator.
Oil filters unscrewed and oil flowed back into the oil separator?
4000 Hourly / 1 Yearly Roto-Inject Fluid Oil Change
Run the compressor until warm
Stop the compressor, close the air outlet valve and switch off the voltage
Wait a few minutes and depressurise by unscrewing plug only one turn to permit any pressure in the system to escape
Loosen the vent plugs on top of the oil coolers
Drain the oil by removing the drain plugs
Tighten the plugs after draining
Remove filler plug
Fill the air receiver with oil until the level reaches the filler opening
Refit and tighten plug
Parts for Atlas Copco Oil Injected Rotary Screw Compressor GA 160
Access the parts list for your equipment in MaintainX.
Roto-Inject Fluid 209-Litre Drum
2901 0045 01
Roto-Inject Fluid 20-Litre Can
2901 0522 00
Roto-Xtend Duty Fluid 209-Litre Drum
2901 1702 00
Roto-Xtend Duty Fluid 20-Litre Can
2901 1701 00
Roto-Xtend Duty Fluid 5-Litre Can
2901 1700 00
Roto-Inject Fluid 209-Litre Drum
2901 0045 01
Roto-Inject Fluid 20-Litre Can
2901 0522 00
Roto-Xtend Duty Fluid 209-Litre Drum
2901 1702 00
Roto-Xtend Duty Fluid 20-Litre Can
2901 1701 00
Roto-Xtend Duty Fluid 5-Litre Can
2901 1700 00
Roto-Inject Fluid 209-Litre Drum
2901 0045 01
Roto-Inject Fluid 20-Litre Can
2901 0522 00
Roto-Xtend Duty Fluid 209-Litre Drum
2901 1702 00
Roto-Xtend Duty Fluid 20-Litre Can
2901 1701 00
Roto-Xtend Duty Fluid 5-Litre Can
2901 1700 00
