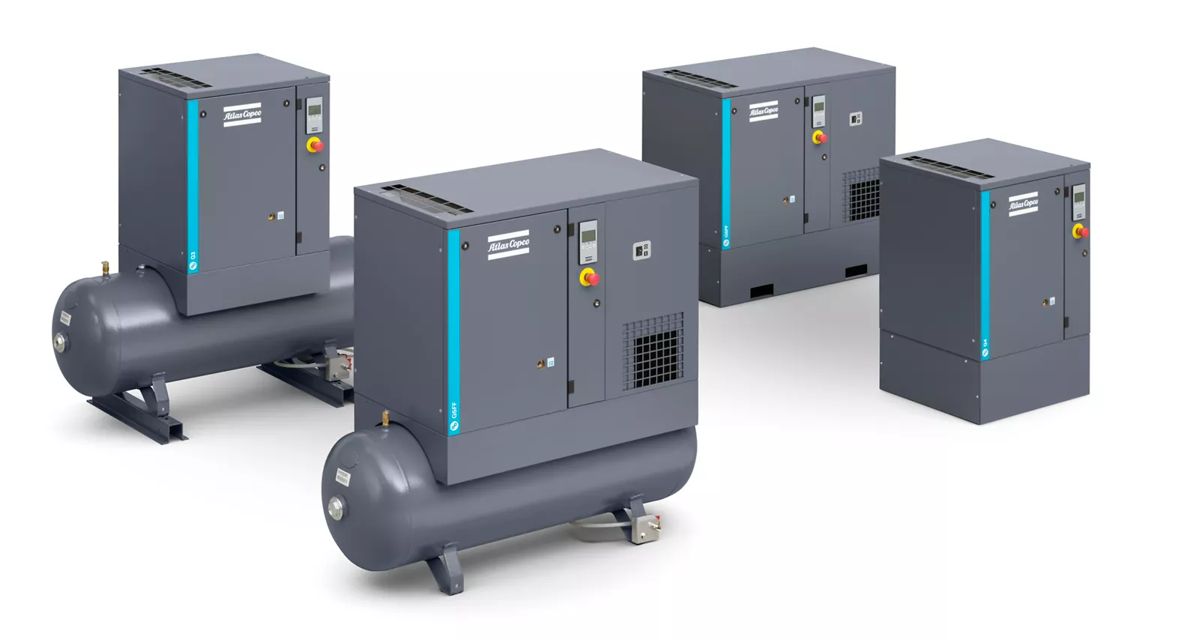

Atlas Copco Oil Injected Rotary Screw Compressor G2FF

Is filter replacement necessary?

Sign off on the filter maintenance

Warning: This procedure requires trained personnel with PPE!

Enter the element outlet temperature

Was the fluid changed successfully?

Stop the compressor, close the air outlet valve and switch off the voltage

For Full-Feature versions: also stop the dryer

Remove the front panel of the compressor housing

Remove the side, back and top panels of the compressor housing

Release the belt tension by loosening tensioning nut

Remove the belt via the fan cowl opening. Install the new belt via the same opening

Tension belt (3) as described above

Drain the condensate from the air receiver after stopping

Apply manual drain valve for drain condensation

Drain condensate from the oil separator vessel every 50 Hours / 1 Week

Check the belt tension after 50 running hours

Stop the compressor, close the air outlet valve and switch off the voltage

Remove the front and top panels

Depressurize the compressor by unscrewing filler plug one turn to permit any pressure in the system to escape

Remove the plug after the system is depressurized

Depressurize the air receiver by opening drain valve

Drain the oil by opening drain valve

Deliver the drained oil to the local oil collection service
