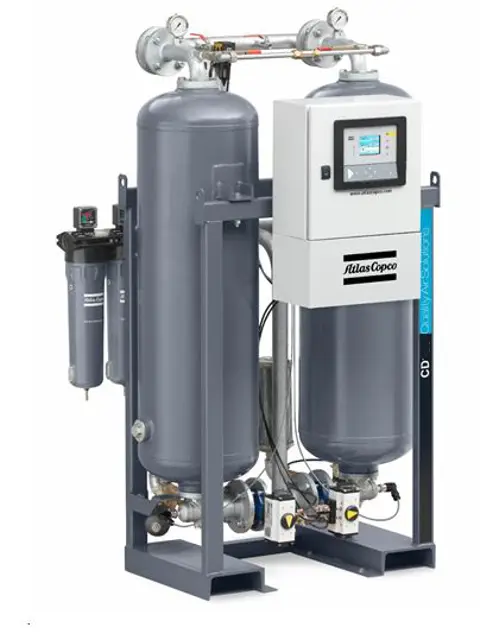

Atlas Copco Air Dryer CD 350+

During maintenance or repair on the regeneration valves, special attention must be paid to the connections of:

1. the pilot air hoses to these valves

2. the electric cabling between the valves and cubicle

Wrong connections may cause the working pressure to be fed to the regeneration silencer which may generate a high noise peak.

• Check that the dryer is switched off.

• Disconnect pressure sources and vent the internal pressure of the system before dismantling any pressurized component.

• Use original Atlas Copco spare parts only.

• Check for correct operation after maintenance

Service plan A, at least once a year

Warning: Disconnect pressure sources and vent the internal pressure of the system before dismantling any pressurized component.

Correct connection of pilot air hoses to the valves

Correct connection of electric cabling between the valves and cubicle

Use of original Atlas Copco spare parts only

Correct operation after maintenance

Sign off on the air dryer check

Warning: For trained personnel only

Disconnect pressure sources and vent the internal pressure of the system before dismantling any pressurized component.

Use original Atlas Copco spare parts only.

Check for correct operation after maintenance

In normal working conditions, the lifetime of the desiccant is approximately 5 years.

It is recommended to have the desiccant replaced by an Atlas Copco service technician.

Pressure sources disconnected and internal pressure of the system vented

Check the connections of the pilot air hoses to the regeneration valves

Check the electric cabling between the valves and cubicle

Check for damaged wiring or loose connections
