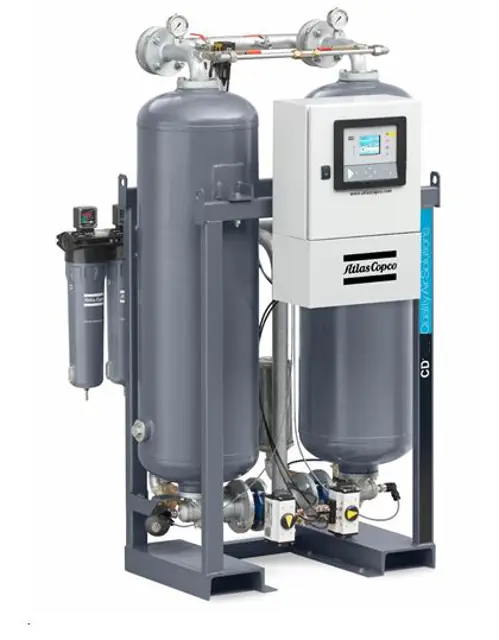

Atlas Copco Air Dryer CD 800

Disconnect pressure sources and vent the internal pressure of the system before dismantling any pressurized component.

Check the connections of the pilot air hoses to the regeneration valves.

Check the electric cabling between the valves and cubicle.

Check for damaged wiring or loose connections.

Disconnect pressure sources and vent the internal pressure of the system before dismantling any pressurized component.

Check the connections of the pilot air hoses to the regeneration valves.

Check the electric cabling between the valves and cubicle.

Use original Atlas Copco spare parts only.

Service plan A, at least once a year

Replace the cartridges of the silencers.

Warning: Pay special attention to the connections of the pilot air hoses to the regeneration valves and the electric cabling between the valves and cubicle.

Pressure sources disconnected and internal pressure of the system vented

Only original Atlas Copco spare parts used

Correct operation after maintenance

Sign off on the air dryer check

During maintenance or repair on the regeneration valves, special attention must be paid to the connections of:

1. the pilot air hoses to these valves

2. the electric cabling between the valves and cubicle

Wrong connections may cause the working pressure to be fed to the regeneration silencer which may generate a high noise peak.

• Check that the dryer is switched off.

• Disconnect pressure sources and vent the internal pressure of the system before dismantling any pressurized component.

• Use original Atlas Copco spare parts only.

• Check for correct operation after maintenance
