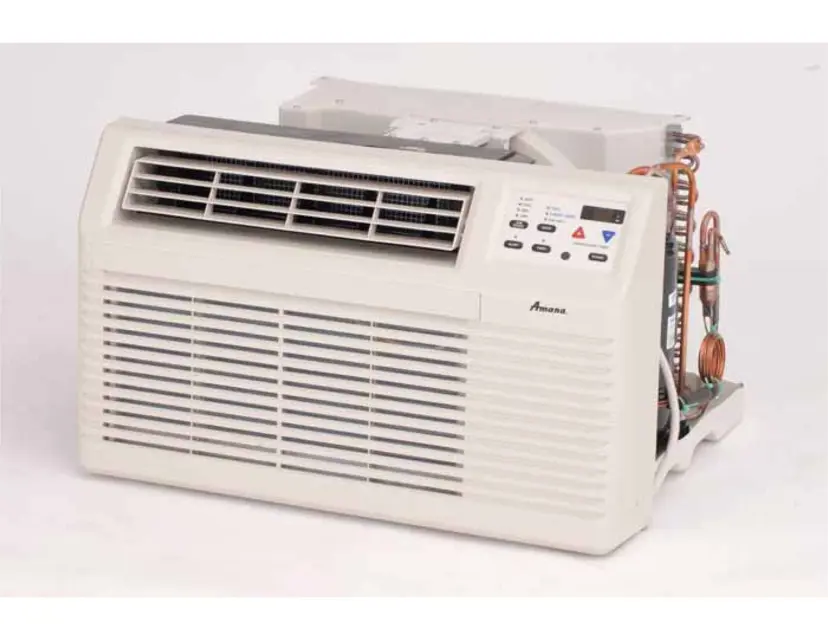

Amana Air Conditioner PBC093J00AA

Ensure capacitors are discharged safely to avoid sparking

Verify no live electrical components and wiring are exposed during operations

Check for continuous electrical ground

Is there any fault that could compromise safety?

Ensure no electrical supply is connected until faults are resolved

Unplug the air conditioner to prevent shock or fire hazards.

Check if the air filter needs cleaning.

Remove the front grille from the unit by grabbing it from both sides and pulling towards you.

Open the front grille to reveal the filter inside.

Grasp and pull out the air filter.

Remove unit to inspect dirt build-up on the inside of the coil and basepan

Check for dirt and algae build-up

Is the coil clogged with dirt and dust?

Clean the basepan if there is dirt or algae build-up

Avoid using high-pressure spray on coil

Ensure no hydrocarbon-based cleaners are used

Ensure the cleaning cloth is not excessively wet

Clean the frontpanel with care, especially the control area

Clean the frontcover with mild soap or detergent

Turn off the power supply to the unit and unplug the power cord from the socket.

Locate the fresh air vent behind the front cover and on the backside of the partition panel on the left side of the air discharge area.

Carefully pull out the unit from the sleeve to access the fresh air filter.

Use a screwdriver to remove the Phillip screw to detach the optional fresh air filter.

Choose the cleaning method for the filter
