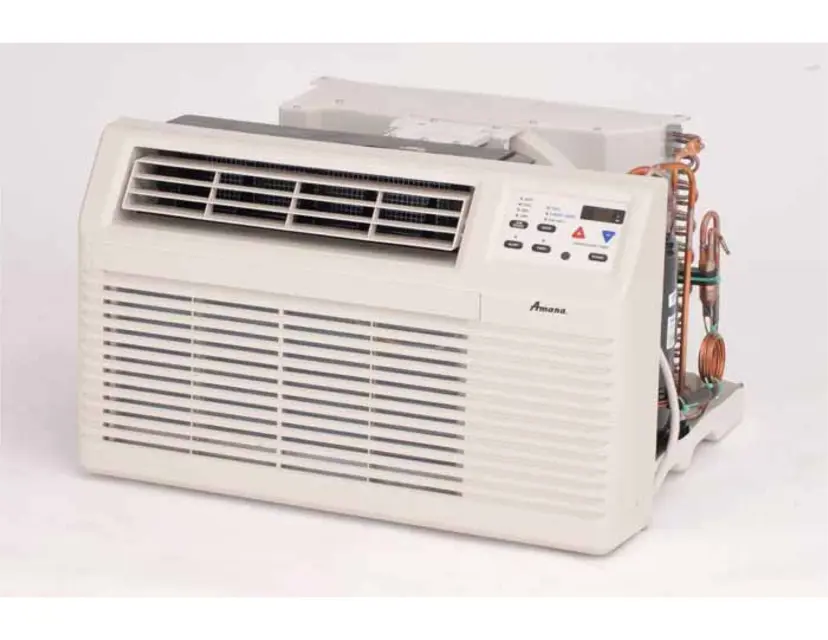

Amana Air Conditioner PBC122J00AA

Inspect the unit by dealer or servicer

Is the unit operated in a dusty climate?

Remove the unit from the sleeve

Thoroughly clean the condenser coil

Unplug the air conditioner to prevent shock or fire hazards.

Check the air filter to determine if cleaning is necessary.

Remove the front grille from the unit

Grasp and remove the air filter.

Choose a cleaning method for the filter

Rinse the filter thoroughly after washing.

Gently shake the excess water from the filter.

Remove unit to inspect dirt build-up on the inside of the coil and basepan

Check for dirt and dust build-up

Is the coil clogged with dirt and dust?

Clean the basepan if there is dirt or algae build-up

Avoid using high-pressure spray on coil

Turn off the power supply to the unit and unplug the power cord from the socket.

Locate the fresh air vent behind the front cover and on the backside of the partition panel on the left side of the air discharge area.

Carefully pull out the unit from the sleeve to access the fresh air filter.

Use a screwdriver to remove the Phillip screw to detach the optional fresh air filter.

Choose the cleaning method for the filter

Ensure capacitors are discharged safely

Verify no live electrical components and wiring are exposed

Check for continuous electrical ground

Is there any fault that could compromise safety?

Ensure no electrical supply is connected until faults are resolved
