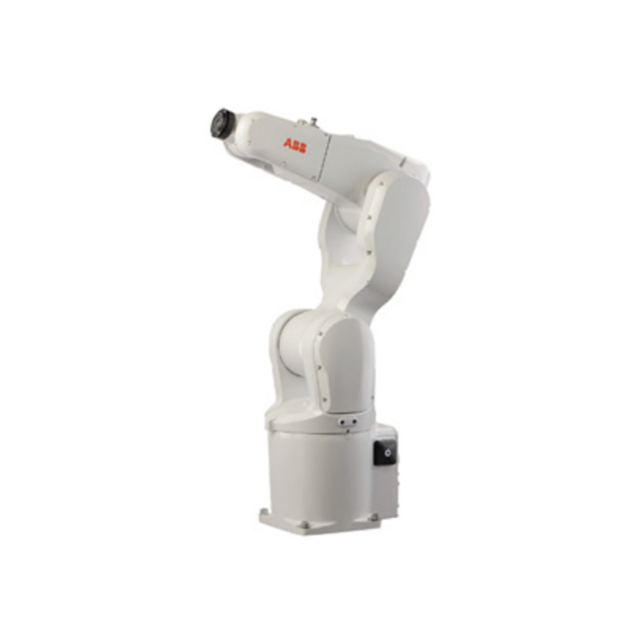

The ABB Robot Arm IRB 1200-7/0.7 type B is a versatile industrial robotic solution designed for precision tasks in manufacturing. Known for its reliability and efficiency, this robot arm excels in applications such as assembly, welding, and material handling, making it a valuable asset in modern automation environments.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for ABB Robot Arm IRB 1200-7/0.7 type B

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

ABB Robot Arm IRB 1200-7/0.7 type B

Create an account to install this asset package.

Maintenance Plans for ABB Robot Arm Model IRB 1200-7/0.7 type B

Integrate maintenance plans directly into your work orders in MaintainX.

Robot Cabling Inspection

Warning: Ensure all power supplies are turned off before entering the robot working area

Electric power supply to the robot turned off

Hydraulic pressure supply to the robot turned off

Air pressure supply to the robot turned off

Control cabling between the robot and control cabinet visually inspected

Upload a photo of the inspected cabling

Any abrasions, cuts or crush damages detected on the cabling

Was the cabling replaced due to wear or damage

Sign off on the robot cabling inspection

Run this procedure

1 Yearly Labels Inspection

Warning: Turn off all electric power supply, hydraulic pressure supply, air pressure supply to the robot, before entering the robot working area.

All power supplies turned off?

Upload a photo of the labels in their current state

All labels present and undamaged?

List any missing or damaged labels

Sign off on the labels inspection

Run this procedure

3 Yearly Timing Belts Inspect

Turn off all: electric power supply, hydraulic pressure supply, air pressure supply to the robot, before entering the robot working area.

Access to each timing belt gained by removing the cover

Timing belts checked for damage or wear

Timing belt pulleys checked for damage

Any damage or wear detected?

If any damage or wear is detected, the part must be replaced!

Each belt checked for tension

Is the belt tension correct?

If the belt tension is not correct, adjust it!

Run this procedure

Battery Pack Replacement

Preparations before removing the battery pack

1. Move the robot to its zero position.

2. Turn off all:

• electric power supply

• hydraulic pressure supply

• air pressure supply

to the robot, before entering the robot working area.

Removing the battery pack

1. DANGER: Make sure that all supplies for electrical power, hydraulic pressure, and air pressure are turned off.

Run this procedure

Mechanical Stops Inspection

Warning: Turn off all power supplies before entering the robot working area

Confirm all power supplies are turned off

Mechanical stops inspection

Replace if the mechanical stop is

Note: The expected life of gearboxes can be reduced as a result of collisions with the mechanical stop.

Sign off on the mechanical stops inspection

Run this procedure

Parts for ABB Robot Arm IRB 1200-7/0.7 type B

Access the parts list for your equipment in MaintainX.

Part Name

Part Number

Gearbox Sleeve

3HAC044685-001

Labels And Plate Set

3HAC051417-001

Gearbox

3HAC057904-001

Manipulator Cable Harness Without Ethernet

3HAC056220-001

Tubular Cover

3HAC059708-001

Gearbox Sleeve

3HAC044685-001

Labels And Plate Set

3HAC051417-001

Gearbox

3HAC057904-001

Manipulator Cable Harness Without Ethernet

3HAC056220-001

Tubular Cover

3HAC059708-001

Gearbox Sleeve

3HAC044685-001

Labels And Plate Set

3HAC051417-001

Gearbox

3HAC057904-001

Manipulator Cable Harness Without Ethernet

3HAC056220-001

Tubular Cover

3HAC059708-001
