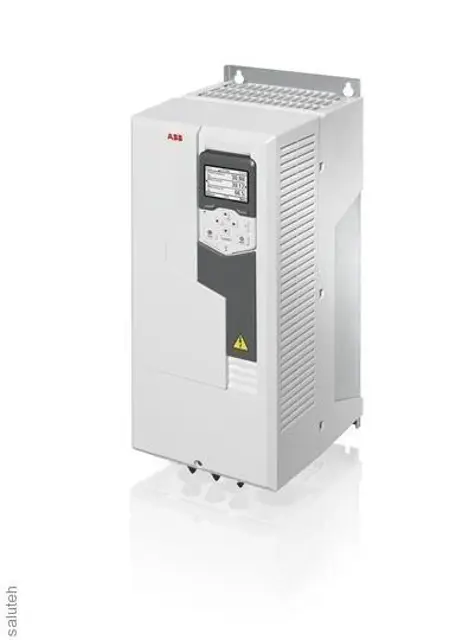

The ABB Frequency Drive ACS580-01-430A-4 is a versatile and efficient variable frequency drive designed for a wide range of industrial applications. With advanced control features and robust performance, it enhances motor efficiency and reliability, making it an ideal choice for optimizing energy consumption in various processes.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for ABB Frequency Drive ACS580-01-430A-4

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

ABB Frequency Drive ACS580-01-430A-4

Create an account to install this asset package.

Maintenance Plans for ABB Frequency Drive Model ACS580-01-430A-4

Integrate maintenance plans directly into your work orders in MaintainX.

3 Yearly Main Cooling Fan Replacement

Drive stopped and disconnected from power line

Voltage measured and confirmed to be zero

Two mounting screws of the fan mounting plate undone

Mounting plate turned downwards

Fan power supply wires unplugged from the drive

Fan mounting plate removed

Fans removed by undoing the two mounting screws

New fans installed in reverse order

Sign off on the cooling fan replacement

Run this procedure

9 Yearly Battery Replacement

Warning: Only trained personnel should perform this procedure.

Control panel removed from the drive

Battery cover removed using a coin

Type of new battery used

Old battery disposed according to local disposal rules or applicable laws

Sign off on the battery replacement

Run this procedure

1 Yearly Drive Maintenance

Quality of supply voltage check

Inspection of spare part stock

Inspection of reforming of DC circuit capacitors

Check for tightness of cable and busbar terminals

If needed, tighten the cable and busbar terminals

Check for ambient conditions (dustiness, moisture, temperature)

Cleaning the control panel

Use a soft damp cloth to clean the control panel. Avoid harsh cleaners which could scratch the display window.

Sign off on the yearly drive maintenance

Run this procedure

1 Yearly Hersink Maintenance

Warning: Use a vacuum cleaner with antistatic hose and nozzle. Using a normal vacuum cleaner creates static discharges which can damage circuit boards.

Drive stopped and disconnected from the power line?

No voltage measured after 5 minutes?

Cooling fan(s) removed?

Clean, dry and oil free compressed air blown from bottom to top?

Simultaneously used a vacuum cleaner at the air outlet to trap the dust?

Cooling fan(s) reinstalled?

Sign off on the Hersink maintenance

Run this procedure

3 Yearly Auxiliary Cooling Fan Replacement

Drive stopped and disconnected from power line

Voltage measurement confirmed no power

Front cover removed
