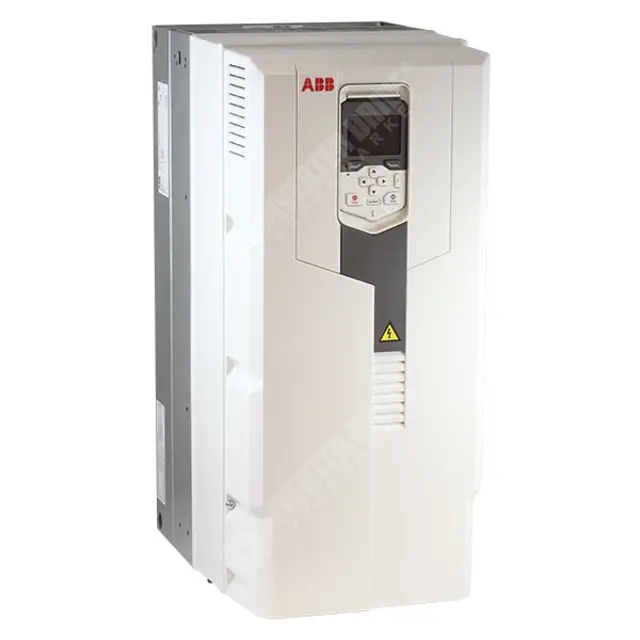

ABB Frequency Drive ACS580-01-169A-4
Need answers fast?
Explore the manual using AI.
The ABB Frequency Drive ACS580-01-169A-4 is a versatile and efficient variable frequency drive designed for various industrial applications. With advanced control features and robust performance, it enhances motor efficiency and reliability, making it an ideal choice for optimizing energy consumption in manufacturing processes.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for ABB Frequency Drive ACS580-01-169A-4
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
ABB Frequency Drive ACS580-01-169A-4
Create an account to install this asset package.
Maintenance Plans for ABB Frequency Drive Model ACS580-01-169A-4
Integrate maintenance plans directly into your work orders in MaintainX.
3 Yearly Auxiliary Cooling Fan Replacement
Drive stopped and disconnected from power line
Voltage measurement confirmed no power
Front cover removed
Fan power supply wires unplugged from the drive
Retaining clips released
Fan lifted off
New fan installed with arrow pointing up
Sign off on the fan replacement
1 Yearly Hersink Maintenance
Warning: Use a vacuum cleaner with antistatic hose and nozzle. Using a normal vacuum cleaner creates static discharges which can damage circuit boards.
Drive stopped and disconnected from the power line?
No voltage measured after 5 minutes?
Cooling fan(s) removed?
Clean, dry and oil free compressed air blown from bottom to top and vacuum cleaner used at the air outlet to trap the dust?
Was there a risk of dust entering adjoining equipment?
If there was a risk of dust entering adjoining equipment, the cleaning should have been performed in another room.
Cooling fan(s) reinstalled?
Sign off on the Hersink maintenance
1 Yearly Drive Maintenance
Quality of supply voltage check
Inspection of spare part stock
Inspection of reforming of DC circuit capacitors
Checking tightness of cable and busbar terminals
If needed, tighten the cable and busbar terminals
Checking ambient conditions (dustiness, moisture, temperature)
Cleaning the control panel
Use a soft damp cloth to clean the control panel. Avoid harsh cleaners which could scratch the display window.
Sign off on the 1 Yearly Drive Maintenance
3 Yearly Main Cooling Fan Replacement
Drive stopped and disconnected from power line
Voltage measurement confirmed no voltage
Two mounting screws of the fan mounting plate undone
Fan mounting plate pulled down from the side edge
Fan power supply wires unplugged from the drive
Fan mounting plate lifted off
Fan removed from the mounting plate
New fan installed in reverse order
Sign off on the fan replacement
9 Yearly Battery Replacement
Warning: Only trained personnel should perform this procedure.
Control panel removed from the drive
Battery cover removed using a coin
Old battery removed
New battery of type CR2032 inserted
Old battery disposed according to local disposal rules or applicable laws
Sign off on the battery replacement
Parts for ABB Frequency Drive ACS580-01-169A-4
Access the parts list for your equipment in MaintainX.
uR and aR Fuse
170M3817
gG Fuse
OFAFOH250
uR and aR Fuse
170M3817
gG Fuse
OFAFOH250
uR and aR Fuse
170M3817
gG Fuse
OFAFOH250
