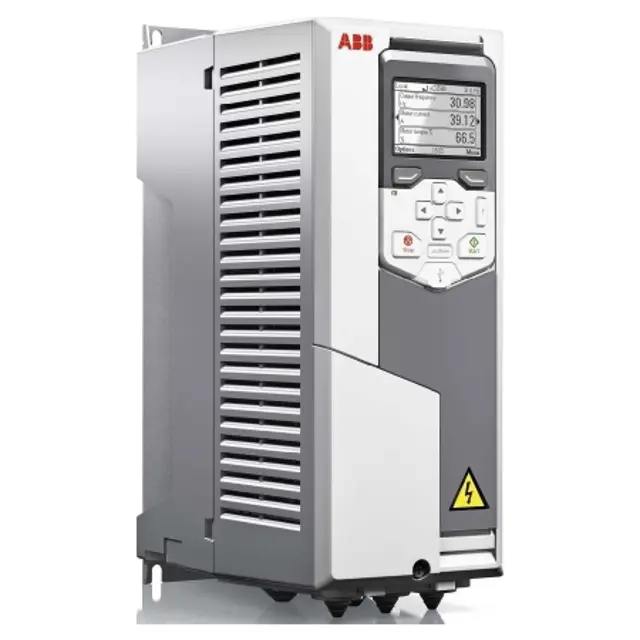

ABB Frequency Drive ACS580-01-105A-4
Create an account to install this asset package.
Maintenance Plans for ABB Frequency Drive Model ACS580-01-105A-4
Integrate maintenance plans directly into your work orders in MaintainX.
9 Yearly Battery Replacement
Warning: Only trained personnel should perform this procedure.
Control panel removed from the drive
Battery cover removed using a coin
Old battery removed
New battery (type CR2032) inserted
Battery cover replaced
Disposal method for old battery
Sign off on the battery replacement
3 Yearly Main Cooling Fan Replacement
Drive stopped and disconnected from power line
Voltage measured and confirmed to be zero
Two mounting screws of the fan mounting plate undone
Fan mounting plate pulled down from the side edge
Fan power supply wires unplugged from the drive
Fan mounting plate lifted off
Fan removed from the mounting plate
New fan installed in reverse order
Sign off on the fan replacement
1 Yearly Hersink Maintenance
Warning: Use a vacuum cleaner with antistatic hose and nozzle. Using a normal vacuum cleaner creates static discharges which can damage circuit boards.
Drive stopped and disconnected from the power line?
No voltage measured after 5 minutes?
Cooling fan(s) removed?
Clean, dry and oil free compressed air blown from bottom to top and vacuum cleaner used at the air outlet to trap the dust?
Note: If there is a risk of dust entering adjoining equipment, perform the cleaning in another room.
Cooling fan(s) reinstalled?
Sign off on the Hersink maintenance
1 Yearly Drive Maintenance
Quality of supply voltage check
Inspection of spare part stock
Inspection of reforming of DC circuit capacitors
Checking tightness of cable and busbar terminals
Tightening needed?
Checking ambient conditions (dustiness, moisture, temperature)
Cleaning the control panel
Use a soft damp cloth to clean the control panel. Avoid harsh cleaners which could scratch the display window.
Sign off on the yearly drive maintenance
3 Yearly Auxiliary Cooling Fan Replacement
Drive stopped and disconnected from power line
Voltage measurement confirms no power
Front cover removed
Fan power supply wires unplugged from the drive
Retaining clips released
Old fan lifted off
New fan installed with arrow pointing up
Sign off on the fan replacement
Parts for ABB Frequency Drive ACS580-01-105A-4
Access the parts list for your equipment in MaintainX.
gG Fuse
OFAF00H125
uR and aR Fuse
170M3815
gG Fuse
OFAF00H125
uR and aR Fuse
170M3815
gG Fuse
OFAF00H125
uR and aR Fuse
170M3815
