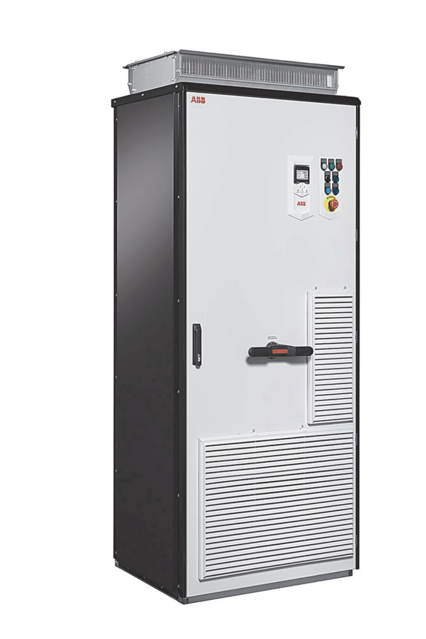

ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0583A-5

Performance quality of supply voltage

Performance DC circuit capacitors reforming, spare modules and spare capacitors

Inspect IP22 and IP42 air inlet and outlet meshes

Inspect dustiness, corrosion and temperature

ABB-SACE Air circuit breaker maintenance

Sign off on the yearly drive maintenance

WARNING! Do not use the module extraction/installation ramp with plinth heights that exceed the maximum allowed height.

Attach the module extraction/installation ramp carefully.

Make sure that the module does not fall over when you move it on the floor.

Do not roll the module on its wheels for a longer distance than what is required for inserting or extracting the module.

To prevent the drive module from falling, attach its top lifting lugs with chains to the cabinet before you push the module into the cabinet and pull it from the cabinet.

Stop the drive and do the steps in section Electrical safety precautions before you start the work.

Unplug quick connector(s) at the right top corner of the control unit mounting plate.

Remove the control unit mounting plate.

WARNING! Use the required personal protective equipment. Wear protective gloves and long sleeves. Some parts have sharp edges.

WARNING! Use a vacuum cleaner with antistatic hose and nozzle, and wear a grounding wristband. Using a normal vacuum cleaner creates static discharges which can damage circuit boards.

Drive stopped and electrical safety precautions followed

Drive module removed from the cabinet

Cleaned with dry, clean and oil-free compressed air from bottom to top and used a vacuum cleaner at the air outlet to trap the dust

Sign off on the heatsink cleaning

Check the dustiness of the air inlet meshes

If the dust cannot be removed by vacuum cleaning from outside through the grating holes with a small nozzle, proceed as follows:

Stop the drive and do the steps in section Electrical safety precautions before you start the work

Remove the fasteners at the top of the grating

Lift the grating and pull it away from the door

Place the new filter mat in the grating the metal wire side facing the door

Reinstall the grating in reverse order

Sign off on the filter replacement

Warning: For trained electrical professionals only

Drive stopped and electrical safety precautions followed

M4×8 (T20) screws at the ends of the control unit removed

XD2D terminal block removed to see the battery

Edge of the control unit cover on the side with the I/O terminal blocks carefully lifted

Battery pulled out of the battery holder

New CR2032 battery put into the battery holder
