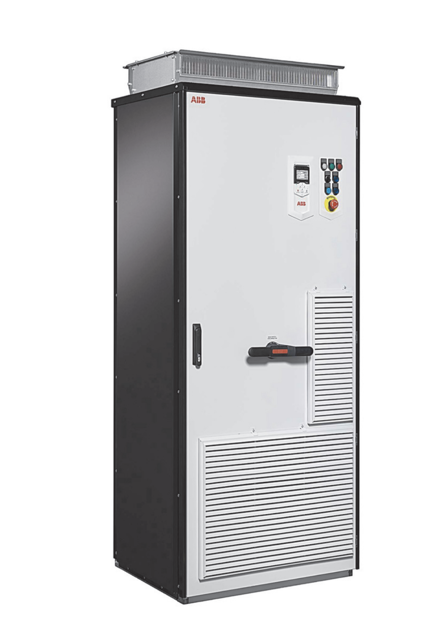

ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0430A-7

Create an account to install this asset package.

Maintenance Plans for ABB Enclosed Variable Speed/Frequency Drive Model ACS880-07-0430A-7

Integrate maintenance plans directly into your work orders in MaintainX.

9 Yearly Circuit Board Compartment Cooling Fan Replacement

WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.

Drive stopped and electrical safety precautions followed

Drive module removed from the cabinet

Fastening screw of the fan enclosure undone

Power supply cable of the fan unplugged

New fan installed in reverse order

Counter reset in group 5 in the primary control program

Sign off on the fan replacement

Run this procedure

Cleaning the Interior of the Cabinet

WARNING! Use a vacuum cleaner with antistatic hose and nozzle, and wear a grounding wristband. Using a normal vacuum cleaner creates static discharges which can damage circuit boards.

Drive stopped and electrical safety precautions followed

Cabinet door opened

Interior of the cabinet cleaned using a vacuum cleaner and a soft brush

Air inlets of the fans and air outlets of the modules (top) cleaned

Air inlet gratings (if any) on the door cleaned

Door closed

Sign off on the cleaning procedure

Run this procedure

1 Yearly Heatsink Cleaning

WARNING! Use the required personal protective equipment. Wear protective gloves and long sleeves. Some parts have sharp edges.

WARNING! Use a vacuum cleaner with antistatic hose and nozzle, and wear a grounding wristband. Using a normal vacuum cleaner creates static discharges which can damage circuit boards.

Drive stopped and electrical safety precautions followed

Drive module removed from the cabinet

Module cooling fan(s) removed

Cleaned heatsink with dry, clean and oil-free compressed air from bottom to top and used a vacuum cleaner at the air outlet to trap the dust

Reinstalled the cooling fan

Sign off on the heatsink cleaning

Run this procedure

1 Yearly Drive Maintenance

Performance quality of supply voltage

Inspect spare parts

Performance DC circuit capacitors reforming, spare modules and spare capacitors

Inspect IP22 and IP42 air inlet and outlet meshes
