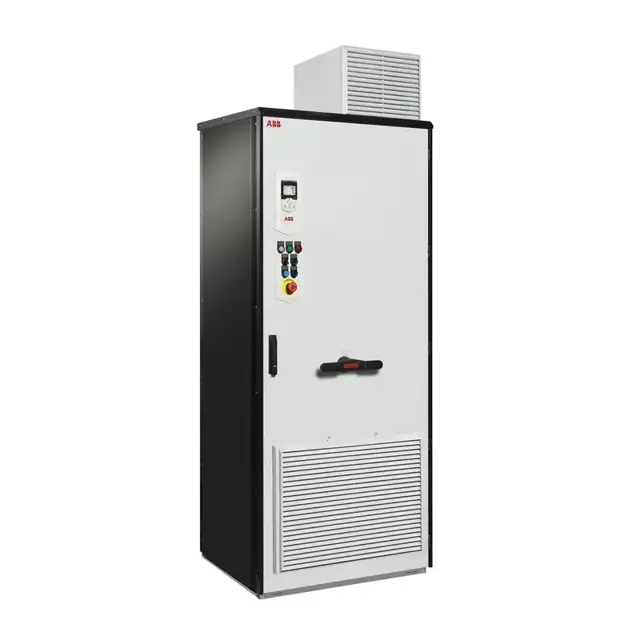

ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0363A-3
Create an account to install this asset package.
Maintenance Plans for ABB Enclosed Variable Speed/Frequency Drive Model ACS880-07-0363A-3
Integrate maintenance plans directly into your work orders in MaintainX.
ZCU-12 Memory Unit Replacement
Warning: Do not remove or insert the memory unit when the control unit is powered.
Drive stopped and electrical safety precautions followed
Clip at the side of the memory pulled up
Memory unit removed
Memory unit installed in reverse order
Sign off on the memory unit replacement
9 Yearly Cabinet “door" Fan Replacement
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed
Mounting plate above the fan removed
Four mounting screws of the fan mounting plate loosened
Mounting plate lifted upwards
Power supply wires unplugged
Fan mounting plate lifted off
Fan removed from the mounting plate
New fan installed in reverse order
Cleaning the Exterior of the Drive
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed
Select cleaning tools used
Select the type of detergent used
Prevented water from entering the drive?
Drive cleaned without using excessive amount of water, a hose, steam, etc.
Sign off on the cleaning procedure
1 Yearly Door Filter IP54 Replacement
Check the dustiness of the air inlet meshes
If the dust cannot be removed by vacuum cleaning from outside through the grating holes with a small nozzle, proceed as follows:
Stop the drive and do the steps in section Electrical safety precautions before you start the work.
Remove the fasteners at the top of the grating.
Lift the grating and pull it away from the door.
Remove the air filter mat.
Place the new filter mat in the grating the metal wire side facing the door.
Reinstall the grating in reverse order.
Sign off on the filter replacement
9 Yearly Auxiliary Cooling Main Fan Replacement
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed
Power supply wires unplugged from the control unit terminal X208:FAN2
Fan lifted up
Upload a photo of the new fan installed with the arrow pointing up
Counter reset in group 5 in the primary control program
Sign off on the fan replacement
Parts for ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0363A-3
Access the parts list for your equipment in MaintainX.
Fuse IEC
170M6410
Fuse IEC
SC32AR69V630TF
Sine Filter
B84143V0390S229
Fuse IEC
170M6410
Fuse IEC
SC32AR69V630TF
Sine Filter
B84143V0390S229
Fuse IEC
170M6410
Fuse IEC
SC32AR69V630TF
Sine Filter
B84143V0390S229
