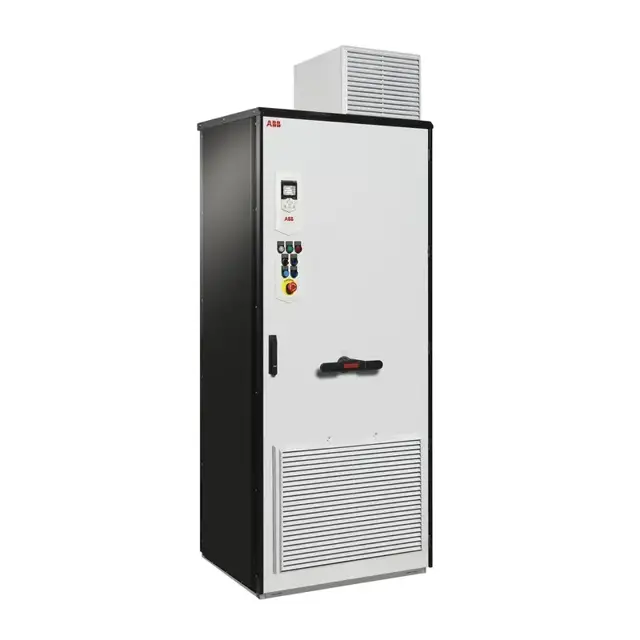

ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0210A-7

Warning: This procedure requires trained personnel with PPE!

Check if the mission time of functional safety components is expired

If the mission time is expired, proceed with the following steps

Upload a photo of the renewed components

Sign off on the safety component replacement

Warning: Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.

Warning: Make sure that the cabinet is secured to the floor. If not, the cabinet can topple over when the heavy drive module is slid forward in front of the cabinet. This can cause injury or death, and damage to the equipment.

Drive stopped and electrical safety precautions followed

Mounting plate above the shroud removed

Warning: For drives with options +G300, +G301, +G307 and +G313: Before you remove the mounting plate, disconnect the external power sources supplying the options.

Pt100 and thermistor relay mounting plate removed (for drives with options +L505 and +L506)

Control cables disconnected from terminal block X504 and terminal block removed (for drives with additional terminal block option +L504)

Screws on the right-hand side of the swing-out frame loosened and frame opened

Warning: Do not remove or insert the memory unit when the control unit is powered.

Drive stopped and electrical safety precautions followed

Upload a photo of the memory unit before removal

Clip at the side of the memory pulled up

Upload a photo of the memory unit after removal

Memory unit installed in reverse order

Upload a photo of the memory unit after installation

Sign off on the memory unit replacement

WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.

Drive stopped and electrical safety precautions followed

Front and back gratings lifted and removed

Mounting screws of the fan cover loosened

Mounting screws of the fan loosened

New fan installed in reverse order

Warning: For trained personnel only

Drive stopped and electrical safety precautions followed

Battery ejector moved into the battery slot on the battery

Old battery carefully pulled out of the battery holder

New CR2032 battery carefully put into the battery holder

Sign off on the battery replacement
