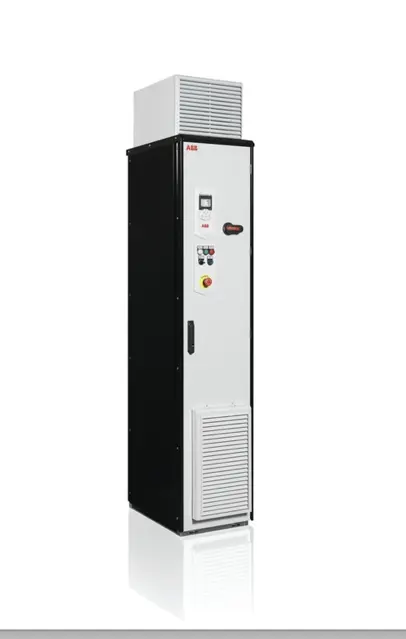

ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0174A-7

Create an account to install this asset package.

Maintenance Plans for ABB Enclosed Variable Speed/Frequency Drive Model ACS880-07-0174A-7

Integrate maintenance plans directly into your work orders in MaintainX.

20 Yearly Safety component Replacement

Warning: This procedure requires trained personnel with PPE!

Check if the mission time of functional safety components is expired

If the mission time is expired, proceed with the following steps

Choose the type of renewal

Note: Renewal is economical only with larger drives that have replaceable circuit boards and other components such as relays.

Check if the renewed components are functioning properly

Sign off on the safety component replacement

Run this procedure

6 Yearly ZCU-12 Control Unit Battery Replacement

Warning: For trained personnel only

Drive stopped and electrical safety precautions followed

Battery ejector moved into the battery slot on the battery

Battery carefully pulled out of the battery holder

New CR2032 battery carefully put into the battery holder

Sign off on the battery replacement

Run this procedure

9 Yearly IP54 (UL type 12) Roof Fan 50 Hz Replacement

WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.

Drive stopped and electrical safety precautions done?

Front grating lifted upwards and removed?

Fastening screws of the front plate loosened and plate removed?

Fan supply wires disconnected?

Mounting screws of the fan loosened?

Fan pulled out?

New fan installed in reverse order?

Sign off on the fan replacement

Run this procedure

ZCU-14 Memory Unit Replacement

Warning: Do not remove or insert the memory unit when the control unit is powered.

Warning: Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur.

Warning: If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.

Drive stopped and electrical safety precautions followed?

Clip of the memory unit pulled forward?

Memory unit taken off?

Memory unit replaced in reverse order?

Sign off on the memory unit replacement

Run this procedure

Cleaning the Interior of the Cabinet

WARNING! Use a vacuum cleaner with antistatic hose and nozzle, and wear a grounding wristband. Using a normal vacuum cleaner creates static discharges which can damage circuit boards.

Drive stopped and electrical safety precautions followed

Cabinet door opened

Interior of the cabinet cleaned using a vacuum cleaner and a soft brush

Air inlets of the fans and air outlets of the modules (top) cleaned

Air inlet gratings (if any) on the door cleaned

Door closed

Sign off on the cleaning procedure

Run this procedure
