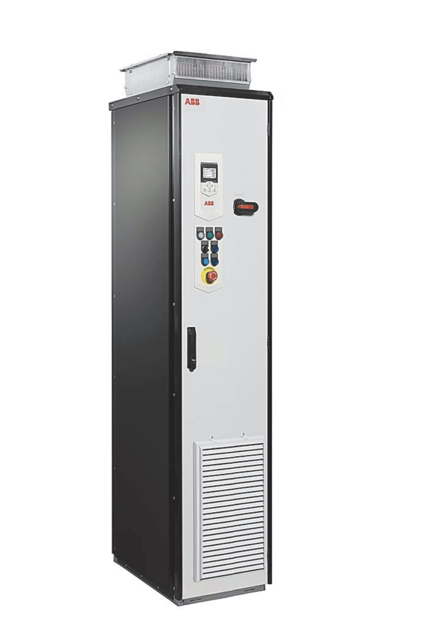

ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0096A-5

Create an account to install this asset package.

Maintenance Plans for ABB Enclosed Variable Speed/Frequency Drive Model ACS880-07-0096A-5

Integrate maintenance plans directly into your work orders in MaintainX.

ZCU-12 Memory Unit Replacement

Warning: Do not remove or insert the memory unit when the control unit is powered.

Drive stopped and electrical safety precautions followed

Upload a photo of the memory unit before removal

Clip at the side of the memory pulled up

Memory unit removed

Upload a photo of the memory unit after removal

Memory unit installed in reverse order

Upload a photo of the memory unit after installation

Sign off on the memory unit replacement

Run this procedure

9 Yearly IP54 (UL type 12) Roof Fan 50 Hz Replacement

WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.

Drive stopped and electrical safety precautions followed?

Front grating lifted upwards and removed?

Fastening screws of the front plate loosened and plate removed?

Fan supply wires disconnected?

Mounting screws of the fan loosened?

Fan pulled out?

New fan installed in reverse order?

Sign off on the fan replacement

Run this procedure

Cleaning the Exterior of the Drive

Drive stopped and electrical safety precautions followed

Select cleaning tools used

Select the type of detergent used

Prevented water from entering the drive

Sign off on the cleaning procedure

Run this procedure

6 Yearly IP54 (UL type 12) Roof Fan 60 Hz Replacement

Drive stopped and electrical safety precautions followed

Front grating lifted upwards and removed

Fastening screws of the front plate loosened and plate removed

Fan supply wires disconnected

Mounting screws of the fan loosened

Fan pulled out

New fan installed in reverse order

Sign off on the fan replacement

Run this procedure

6 Yearly ZCU-14 Control Unit Battery Replacement

Warning: For trained personnel only. Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur.

Drive stopped and electrical safety precautions followed

M4×8 (T20) screws at the ends of the control unit removed

XD2D terminal block removed to see the battery

Edge of the control unit cover on the side with the I/O terminal blocks carefully lifted

Battery pulled out of the battery holder

New CR2032 battery put into the battery holder

Control unit cover closed

M4×8 (T20) screws tightened

Run this procedure
