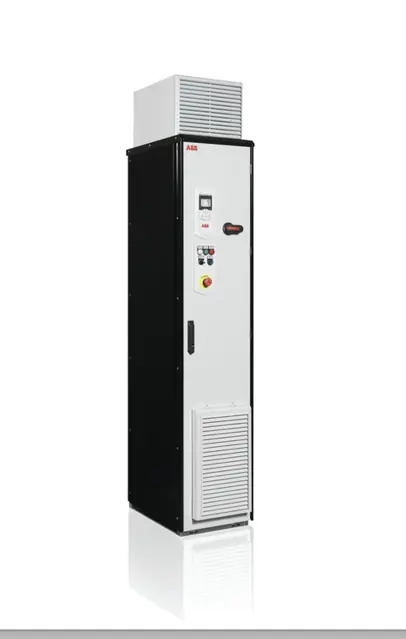

The ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0061A-7 is designed for precise motor control and energy efficiency in industrial applications. This advanced drive offers robust performance, reliability, and flexibility, making it ideal for various automation needs. Optimize your operations with this high-quality ABB solution.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0061A-7

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0061A-7

Create an account to install this asset package.

Maintenance Plans for ABB Enclosed Variable Speed/Frequency Drive Model ACS880-07-0061A-7

Integrate maintenance plans directly into your work orders in MaintainX.

6 Yearly ZCU-14 Control Unit Battery Replacement

Warning: For trained personnel only. Follow safety instructions of the drive.

Drive stopped and electrical safety precautions followed

M4×8 (T20) screws at the ends of the control unit removed

XD2D terminal block removed to see the battery

Edge of the control unit cover on the side with the I/O terminal blocks carefully lifted

Battery pulled out of the battery holder

New CR2032 battery inserted into the battery holder

Control unit cover closed

M4×8 (T20) screws tightened

Run this procedure

ZCU-12 Memory Unit Replacement

Warning: Do not remove or insert the memory unit when the control unit is powered.

Drive stopped and electrical safety precautions followed

Clip at the side of the memory pulled up

Memory unit removed

Memory unit installed in reverse order

Sign off on the memory unit replacement

Run this procedure

9 Yearly Cabinet “door" Fan Replacement

WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.

Drive stopped and electrical safety precautions followed

Mounting plate above the fan removed

Four mounting screws of the fan mounting plate loosened

Mounting plate lifted upwards

Power supply wires unplugged

Fan mounting plate lifted off

Fan removed from the mounting plate

New fan installed in reverse order

Run this procedure

1 Yearly Heatsink Cleaning

WARNING! Use the required personal protective equipment. Wear protective gloves and long sleeves. Some parts have sharp edges.

WARNING! Use a vacuum cleaner with antistatic hose and nozzle, and wear a grounding wristband. Using a normal vacuum cleaner creates static discharges which can damage circuit boards.

Drive stopped and electrical safety precautions followed

Drive module removed from the cabinet

Module cooling fan(s) removed

Heatsink cleaned with dry, clean and oil-free compressed air from bottom to top

Vacuum cleaner used at the air outlet to trap the dust

Cleaning performed in another room if there is a risk of dust entering adjoining equipment

Cooling fan reinstalled

Run this procedure

9 Yearly Drive Module Main Fan Replacement

Drive stopped and electrical safety precautions followed

Drive module slid forward

Mounting screws of the fan mounting plate undone
