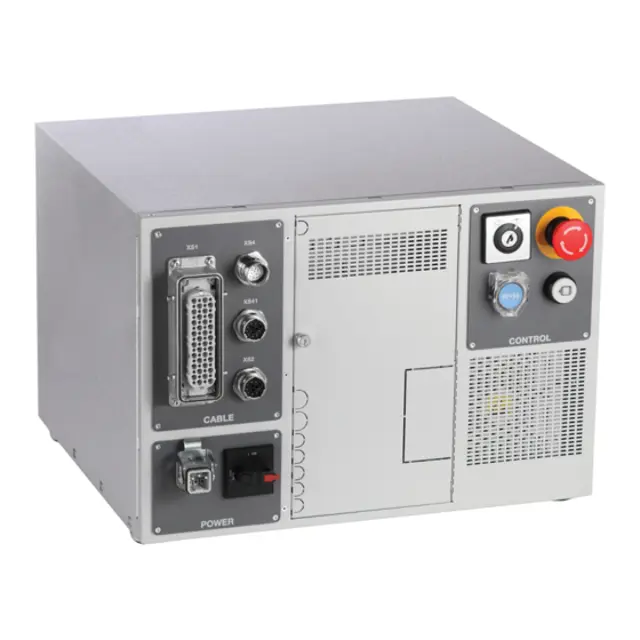

ABB Controller IRC5 Compact
ABB Controller IRC5 Compact

The ABB Controller IRC5 Compact is a highly efficient industrial automation controller designed for precision and reliability. This advanced model streamlines operations in various applications, ensuring optimal performance and ease of integration within existing systems. Enhance your automation capabilities with the IRC5 Compact from ABB.

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for ABB Controller IRC5 Compact

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

ABB Controller IRC5 Compact

ABB Controller IRC5 Compact

Create an account to install this asset package.

Maintenance Plans for ABB Controller Model IRC5 Compact

Integrate maintenance plans directly into your work orders in MaintainX.

FlexPedant Cleaning

Check mark

Warning: Use ESD Protection

Check mark

Screen locked?

Check mark

Safe to clean the FlexPendant when the Lock screen appears

Check mark

Cleaned the touch screen and hardware buttons using a soft cloth and water or a mild cleaning agent?

Check mark

Screen unlocked by tapping the buttons?

Check mark

Use cleaning equipment as specified above. Any other cleaning equipment may shorten the life time of the touch screen.

Check mark

All protective covers are fitted to the device before cleaning?

Check mark

No foreign objects or liquids can penetrate into the device?

Check mark

No covers removed before cleaning the FlexPendant?

Run this procedureArrow right

1 Year Three-position Enabling Device Function Test

Check mark

Start the robot system and turn the mode switch to manual mode.

Check mark

Press the three-position enabling device to the middle position and then hold the enabling device in this position. Check if the event message 10011 Motors ON state appears in the event log.

Check mark

While still holding the three-position enabling device pressed, press the enabling device harder to the enable the device's third position. Check if the event message 10012 Safety guard stop state appears in the event log.

Check mark

If any of the tests failed, describe the root cause.

Check mark

Sign off on the function test

Run this procedureArrow right

1 Year Reduced Speed Control Function Test

Check mark

Start the robot system and change the operating mode to manual.

Check mark

Create a test program where the robot moves along a known distance with a programmed speed higher than 250 mm/s. The distance and speed must be adapted to the current installation and robot model.

Check mark

Start the program in manual mode and measure the time it takes for the robot to travel the distance.

Check mark

Did the speed of the robot not exceed 250 mm/s?

Check mark

If the test failed, describe the root cause of the failure.

Check mark

TIP! To get accurate results, use sensors or I/O signals to measure the time.

Check mark

Sign off on the test results

Run this procedureArrow right

1 Year Emergency Stop Function Test

Check mark

Visual inspection of the emergency stop button for physical damage

Check mark

Start the robot system

Check mark

Press the emergency stop button and check if the event message 10013 Emergency stop state appears in the event log

Check mark

If the test failed, describe the issue

Check mark

Release the emergency stop button and press the motors on button to reset the emergency stop state

Check mark

Sign off on the emergency stop function test

Run this procedureArrow right

1 Year Controller Inspection

Check mark

DANGER! Before doing any work inside the cabinet, disconnect the mains power.

Check mark

WARNING! The unit is sensitive to ESD. Inspect connectors and cabling to make sure they are securely fastened and cabling not damaged.

Check mark

Inspect the system fans and ventilation holes on the surface of the cabinet to make sure they are clean.

Check mark

After cleaning, temporarily turn the power supply to the controller on. Inspect the fans to make sure they function correctly. Turn the power supply back off.

Check mark

Sign off on the controller inspection

Run this procedureArrow right

Parts for ABB Controller IRC5 Compact

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

WiFi Connected Services Box

ЗНАС058038-001

Connected Services Box

3HAC049807-001

Multipole Con.

3HAC051190-00

Line Filter

ЗНАС037698-001

Brake Resistor Bleeder Asm

3HAC051187-001

WiFi Connected Services Box

ЗНАС058038-001

Connected Services Box

3HAC049807-001

Multipole Con.

3HAC051190-00

Line Filter

ЗНАС037698-001

Brake Resistor Bleeder Asm

3HAC051187-001

WiFi Connected Services Box

ЗНАС058038-001

Connected Services Box

3HAC049807-001

Multipole Con.

3HAC051190-00

Line Filter

ЗНАС037698-001

Brake Resistor Bleeder Asm

3HAC051187-001
