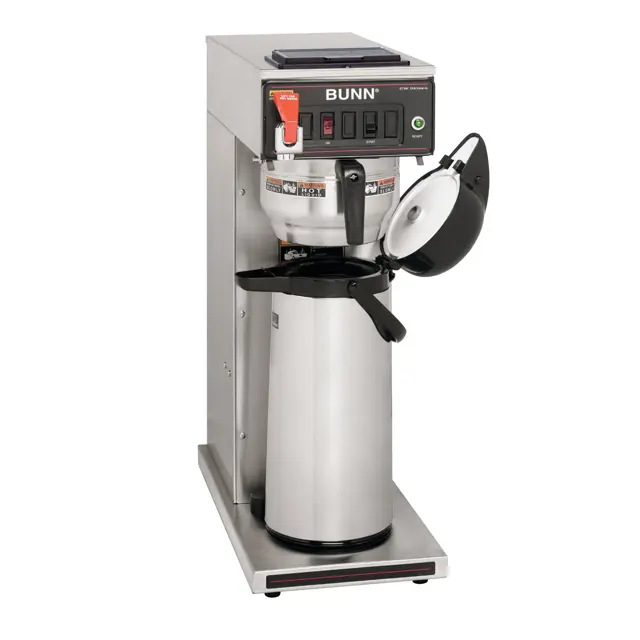

Bunn Coffee Machine CWTF15-3

Warning: Disconnect the brewer from the power source before starting the test

Brewer disconnected from the power source

Blue and black wires disconnected from the limit thermostat

Continuity across the limit thermostat terminals checked with a ohmmeter

Sign off on the limit thermostat test

Warning: Ensure the coffee machine is unplugged before starting the procedure

All wires removed from limit thermostat terminals

Limit thermostat slid out from under the retaining clip and removed

New limit thermostat slid into the retaining clip

Sign off on the thermostat replacement

Warning: Disconnect the brewer from the power source before starting the test

White or red wire removed from the upper terminal and black wire from the center terminal

Voltage across the white or red wire and the black wire

If voltage is not as described, refer to the Wiring Diagrams and check the brewer wiring harness

Black wire removed and wire from the lower terminal removed

Continuity present across the center and lower terminal with the switch in the 'ON' position

Continuity not present when the switch is in the 'OFF' position

Disconnect the timer socket from the brewer wiring harness and the timer leads from the solenoid valve

Remove the one #8-32 screw securing timer to component bracket

Install new timer on component bracket securing with one #8-32 screw

Upload a photo of the reconnected wires

Readjust the timer dial as required

Sign off on the timer replacement

Disconnect the water supply tube from the fill basin

Remove the tank inlet fitting securing the fill basin to the tank lid, remove fill basin and tank inlet gasket. Set all three parts aside for reassembly

On brewers with faucet shut-off water supply to the brewer and disconnect the inlet and outlet water lines to the faucet coil assembly

Disconnect the black wire on the limit thermostat from the tank heater switch. On late model brewers also disconnect the blue wire from the limit thermostat to the control thermostat

Disconnect the black wire and the white or red wire from the tank heater terminals

Remove sprayhead and the hex nut securing the sprayhead tube to the hood. Set aside for reassembly

Remove the eight #8-32 nuts securing the tank lid to the tank

Remove the tank lid with limit thermostat, sprayhead tube, tank heater, coil assembly and control thermostat w/bracket (early models only)

Remove the two hex nuts securing the tank heater to the tank lid. Remove tank heater with gaskets and discard
