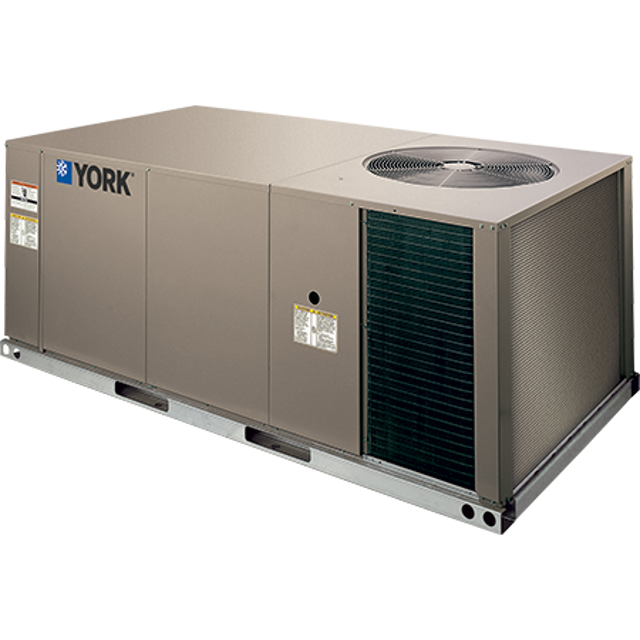

York Single Package Air Conditioner ZT049E00A2A1AAA1A1

Verify that the unit is properly phased at the factory.

Is the blower rotating in the correct direction?

Is the compressor rotating in the correct direction?

Measure the amperage of the scroll compressor.

Are the suction and discharge pressures normal?

Is the noise level of the scroll compressor normal?

Gas Connection and Pressure Check

Open the main shut-off valve to admit normal gas pressure to the mains.

Check all joints for leaks using soap solution or other suitable material

Check that all filters are in place

Inspect filters for dirt and debris

Do the filters need replacement?

Replace filters with the same size and type

Ensure filters are installed ahead of evaporator coil

Close main manual shut-off valve

Open the union fitting upstream of the unit gas valve and downstream from the main manual shut-off valve

Remove screws holding each end of the manifold to the manifold supports

Disconnect wiring to the gas valve

Remove the manifold & gas valve assembly

Clean all piping of dirt and scale by hammering on the outside of the pipe.

Blow out loose particles from the piping.

Have all gas lines external to the unit been purged of air?
