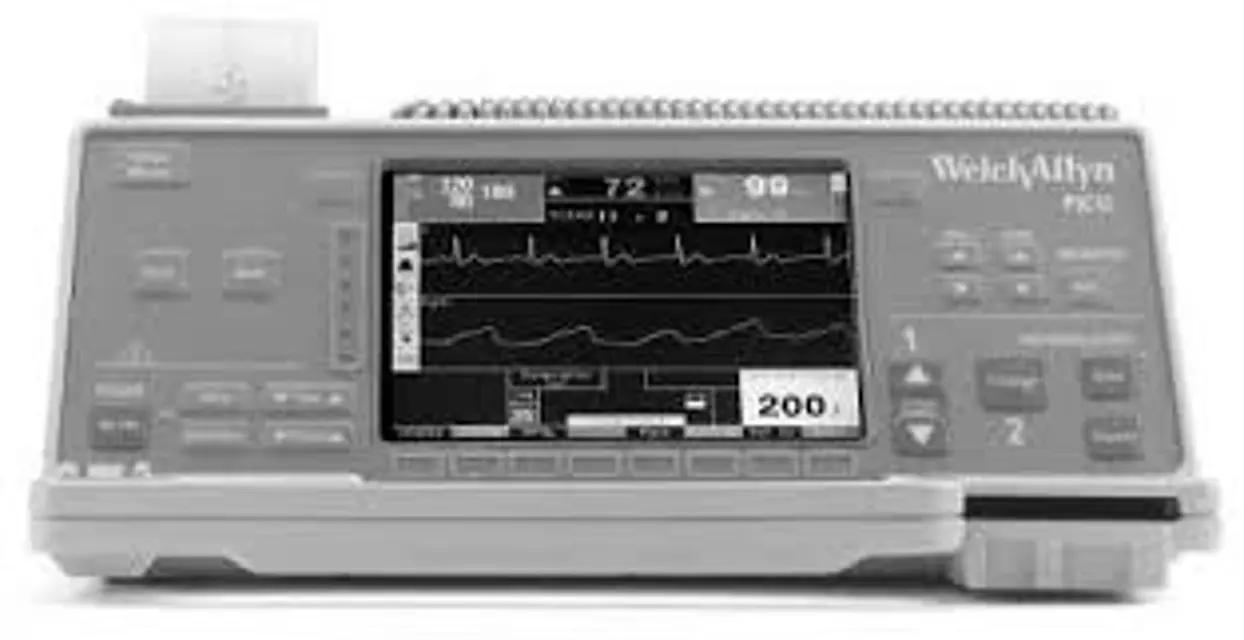

Welch Allyn Portable Intensive Care System PIC 2H

Visual Inspection of Power Cord

Inspect the mains power cord for visible damage

Check the cord for cuts or cracks in the insulation and strain reliefs

Inspect the connector pins for bending

Is the power cord free from any damage?

Replace the power cord if any damage is found

Notes on any damage found or actions taken

Inspect Internal Paddle Electrodes and Cable

Inspect internal paddle electrodes for signs of damage or deterioration.

Check for cracking, chipping, or peeling of the electrode insulation.

Check for cuts or cracks in the cable insulation and handles.

Inspect the cable connector casing for cracks or distortion.

Inspect for bent or corroded connector pins.

Inspect Internal Paddle Adapter

Check if the internal paddle adapter shows signs of damage.

Inspect cable insulation for cuts or cracks

Check for bending or corroding of connector pins

Look for heat-related damage indicating exposure to sterilization

Is there any damage observed on the cable?

Notify PIC operators if the cable is damaged and not intended for sterilization

Replace the damaged hands-free cable before returning to normal use

Check the electrode surfaces for pitting or deep scratches

Check the cable insulation for cuts or fraying

Check the connector end of the paddles for damaged or corroded connector pins

Check the latch for proper operation

Notify PIC operators if heat damage is observed

Inspect all patient cables for signs of wear or damage

Check for cracks or cuts in the cable insulation and strain reliefs

Inspect for bent or corroded pins

Inspect each patient cable snap connector for corrosion

Remove any damaged cables from service

Replace damaged cables before returning the PIC to normal use
