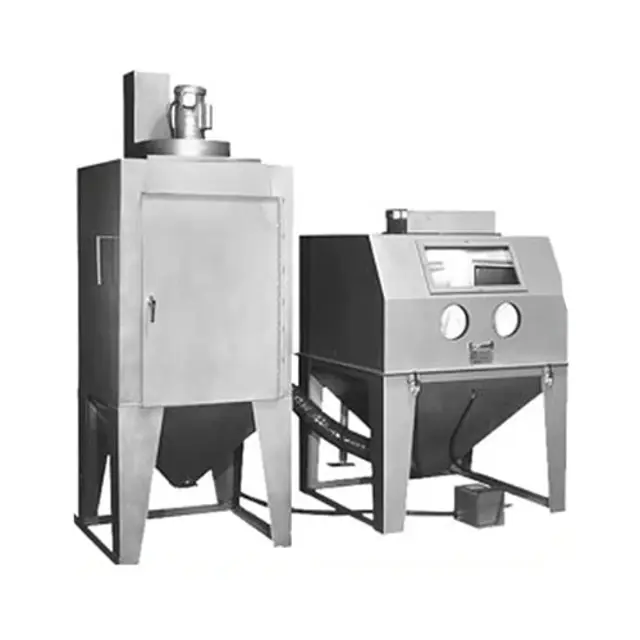

Trinco Sand Blast Booth 42x24 SL/DELUXE

Place a container under the dust collector hopper

Un-latch the door at bottom of hopper

Shake loose dust cake from filter bags in dust collector by applying a push pull motion on shaker handle

Allow a few minutes for dust to settle into dust hopper

Inspect blast gun for worn nozzle and air jet

Refer to 'Poor Abrasive Flow' section of manual

Check particle screen located inside the Abrasive Separator and remove any accumulated debris

Check media level in Abrasive Separator hopper and add if needed

Inspect all gasketing on cabinet openings. Replace if damaged or worn out

Inspect metering valve at bottom of Abrasive Separator

Inspect plastic lamp shield below the lampbox assembly. Lamp shield will block light from illuminating cabinet interior if too etched or worn. Replace as needed

Inspect fiberglass filters at front of Dust Collector. Replace if clogged with dust. Inspect cloth filter bags for tears, holes, or loose bags. Replace as needed

Sign off on the weekly sand blast booth maintenance

Warning: Ensure the machine is turned off and unplugged before starting the procedure.

Select the part number for replacement

Un-clamp media hose 'A' from flange 'B'. Using pliers, slide out sleeve 'C' from flange 'B'

Slide new sleeve 'C' into flange 'B' with it pointed facing up and touching the hopper wall of the cabinet

Re-clamp media hose 'A' onto flange 'B'

Sign off on the media sleeve replacement
