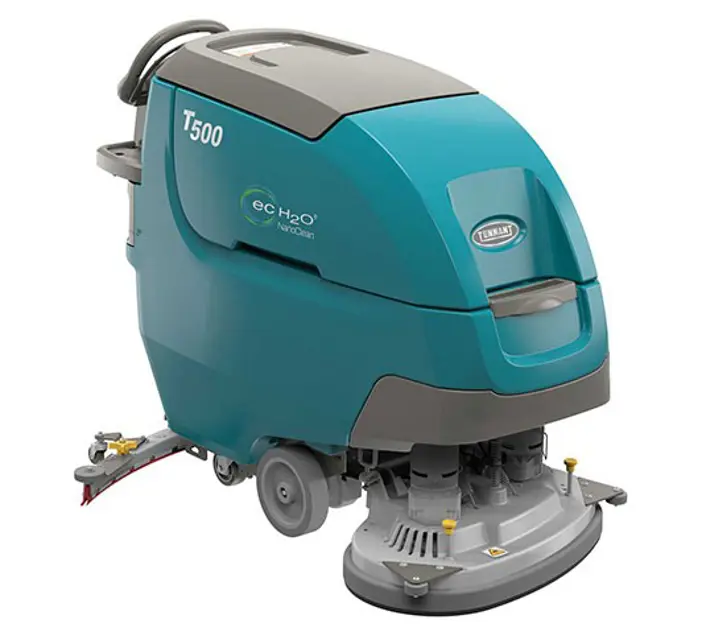

Tennant Floor Scrubber T500

Create an account to install this asset package.

Maintenance Plans for Tennant Floor Scrubber Model T500

Integrate maintenance plans directly into your work orders in MaintainX.

100 Hourly Battery Watering System Check

Warning: This check requires personal protection equipment! Avoid contact with battery acid.

Is machine equipped with the optional battery watering system?

If machine is not equipped with the optional battery watering system, skip the next steps and sign off.

Check hoses for damage and wear

Check hoses for leaks

Check for loose hose connections

Replace system if damaged?

Sign off on the battery watering system check

Run this procedure

200 Hourly Floor Scrubber Maintenance

Warning: This maintenance check requires trained personnel with PPE!

Batteries, terminals and cables checked and cleaned

CHECKING CONNECTIONS / CLEANING (ALL BATTERY TYPES)

Loose battery connections checked

Surface of the batteries, including terminals and cable clamps cleaned

Mixture used for cleaning

Battery caps remained on during cleaning

Sign off on the floor scrubber maintenance

Run this procedure

1 Daily Floor Scrubber Maintenance

To be done by operator.

Pads - Check, flip or replace

Brushes - Check, clean

Cylindrical brushes - Check, clean

Recovery tank - Drain, rinse, clean float shut‐off screen and debris tray

Solution tank - Drain, rinse

Severe environment tank (option) - Check, refill

Automatic battery watering tank (option) - Check, refill

Squeegee - Clean, check for damage and wear

Run this procedure

1 Weekly Floor Scrubber Maintenance

To be done by operator

Battery cells - Check electrolyte level

Squeegee assembly drip trap reservoir - Check, clean

AFTER WEEKLY USE

Check the electrolyte level in all batteries

Remove the drip trap cover from the squeegee assembly and clean reservoir

Sign off on the weekly floor scrubber maintenance

Run this procedure

Cartridge Replacement

Safety: Before leaving or servicing machine, stop on level surface, turn off machine, remove key and set parking brake if equipped.

The water conditioning cartridge is required to be replaced when it reaches its maximum water usage or expiration time of when the cartridge was activated, which ever comes first. The control panel will signal a code when it's time to replace cartridge.

Depending on machine usage, on average, a new cartridge can last anywhere from 12 months for heavy machine usage to 24 months for light machine usage.

ATTENTION: During first time use and after replacing the water conditioning cartridge, the ec-H2O system will automatically override the selected solution flow rate for up to 75 minutes.

Park the machine on a level surface, remove the key and set parking brake, if equipped.

Lift the recovery tank to access the ec‐H2O water conditioning cartridge. Drain recovery tank before lifting tank.

Disconnect the two hose connectors from the top of the cartridge by pressing the gray collars inward and pulling the connectors outward. Lift cartridge to remove.

Fill in the installation date on the new cartridge label.

Install the new cartridge and reconnect the two hoses. Make sure the hose connectors are fully inserted into the cartridge.

Run this procedure
