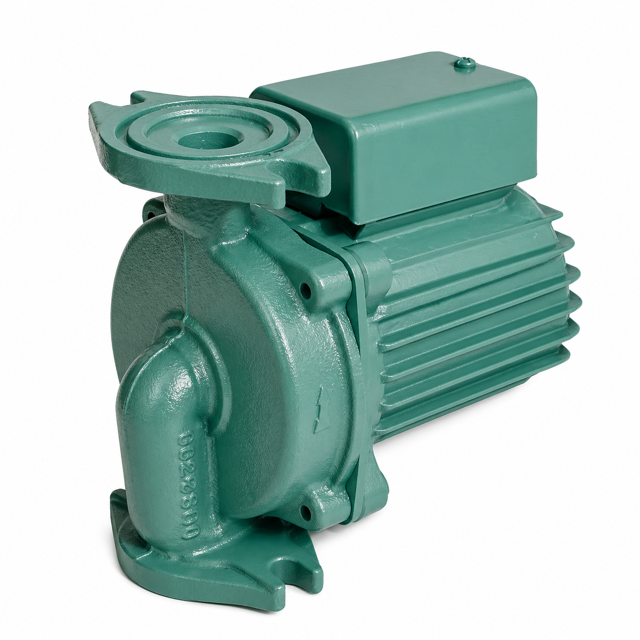

Taco Pump KS 2006

Record motor bearing temperature

Is the motor bearing temperature within the normal range?

Is the suction gauge reading normal?

Is the discharge gauge reading normal?

If gauge readings are abnormal, describe the issue

Ensure all parts are free from burrs and damage

Insert stationary element of seal into seal cover

Avoid touching seal surfaces to prevent leakage

Avoid contaminating seal faces with fingerprints

Lubricate pump shaft end with silicone grease

Ensure no petroleum oil or grease is used

Place spring retainer and spring against retaining ring

Ensure all parts to be replaced are free from burrs and damage

Insert stationary element of seal into seal cover

Ensure seal surfaces are not touched to prevent leakage

Ensure seal faces are not contaminated with fingerprints

Ensure the seal cover O-ring is properly seated in groove

Install retaining ring in seal cover to retain stationary seal

Seal Cover and Shaft Preparation

Seal Cover and Shaft Coupling Removal

Draw off the seal rotating element from the shaft

Apply silicone grease on the OD of the shaft

Remove the stationary seal element from the seal cover

Close suction and discharge valves

Drain liquid from casing by removing drain plug

Remove coupler guard from both sides

Remove seal flush line, seal and coupling

Remove bolts holding cover/motor adapter to casing

Remove motor adapter and motor as one assembly from cover/casing
