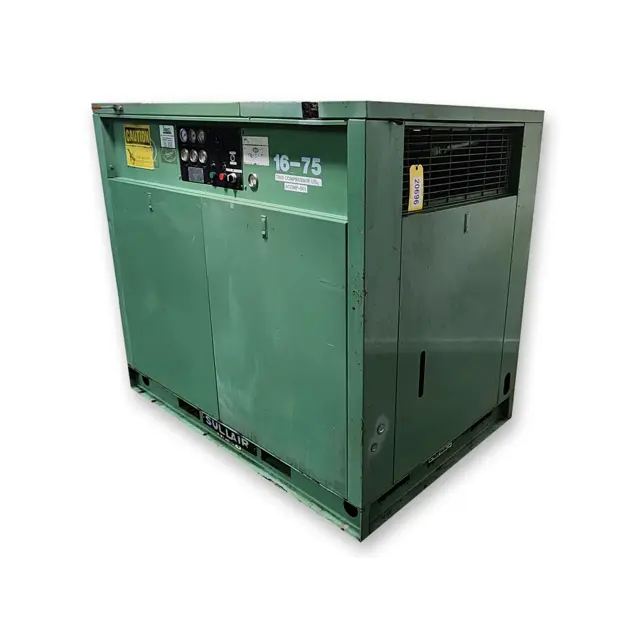

Sullair Compressor 12B-60 24KT

Filter Maintenance Instructions

Replace your fluid filter element and the gasket under any of the following conditions, whichever occurs first:

Was the filter replaced successfully?

Sign off on the filter maintenance

Warning: Ensure the compressor is turned off and cooled down before performing any maintenance tasks.

Clean the return line strainer.

Clean the compressor unit gear housing.

Clean the bearing and shaft seal orifices (care must be taken not to damage shaft seal).

Sign off on the maintenance tasks.

PARTS REPLACEMENT AND ADJUSTMENT PROCEDURES

FLUID FILTER ELEMENT REPLACEMENT

1. Using a strap wrench, remove the old element and gasket.

2. Clean gasket seating surface.

3. Apply a light film of fluid to the new gasket.

4. Hand tighten new element until new gasket is seated in the gasket groove. Avoid any nick, cuts or pinches to the gasket.

5. Continue tightening element by hand an additional 1/2 to 1/4 turn.

6. Restart compressor and check for leaks.

Lubricate the Sullicon Control linkage

Replace the fluid filter element and gasket

Drain the sump and change the compressor fluid

Sign off on the 1000 hourly compressor maintenance

Replace the separator elements when your separator maintenance gauges shows red or after one (1) year, whichever comes first. The separator elements must be replaced. DO NOT clean the separator elements.

The separator elements must be changed when the maintenance gauge shows red, or once a year whichever occurs first. Order separator element numbers 250034-116 (primary) and 250034-118 (secondary). Follow the procedure explained below for separator element replacement.

1. Relieve all pressure from the sump tank and all compressor lines.

2. Disconnect all piping connected to the sump cover to allow removal (return lines, service lines, etc.).

3. Loosen and remove the eight (8) hex head capscrews (5/8“ x 2”) from the cover plate.

4. Lift the cover plate from the sump.

5. Remove the primary (250034-116) and secondary (250034-118).

6. Inspect the receiver/sump tank for rust, dirt, etc.
