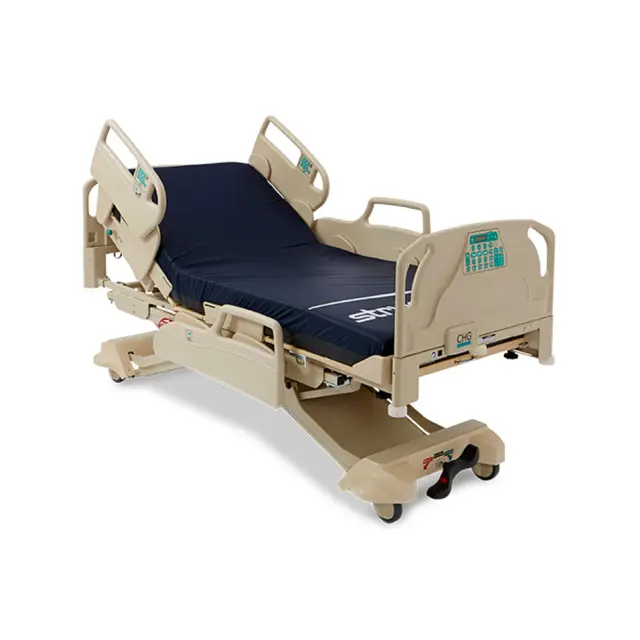

Stryker Stryker Hospital Bed 5700 5700

Warning: Always follow industry best practices for all cleaning and/or disinfection operations.

The SpiritTM bed is not rated for spray and/or pressure washing or steam cleaning/sterilization.

Check if the bed is SpiritTM model

If the bed is not SpiritTM model, stop the procedure and report to the supervisor

Cleaning: All SpiritTM bed surfaces cleaned with soapy water and/or other non-abrasive cleaners

Disinfection: All SpiritTM bed surfaces disinfected with ethanol or isopropyl alcohol, and/or Mikro QuatTM (or equivalent cleaning solution)

Enter the Sodium Hypochlorite Concentration used for disinfection

Disinfected surfaces rinsed with potable (tap) water and wiped dry

Sign off on the bed cleaning and disinfection

Warning: This calibration procedure requires trained personnel with PPE!

Bed angle calibration successful?

If bed angle calibration is not successful, report the issues to the maintenance team and stop the procedure

Bed raised to comfortable working height?

Calibration units and weight amount set correctly?

Calibration weight correctly set and exact total sum of calibration mass used?

Note: A scale is most accurate and delivers superior repeatability when it has been calibrated within the range that the scale is expected to typically operate.

Calibration masses placed correctly at patient left, head end of the bed?

Calibration masses placed correctly at patient left, foot end of the bed?

Contact at any point on each of the six obstruction sensor pads stops all downward bed motion

Bed automatically elevates the 1” safety distance

Audible and visual warnings are present

Select any obstruction sensor pad that fails to operate correctly or consistently

Sign off on the obstruction sensor inspection

Side rail fully and smoothly rotates from the DOWN position to the UP position

No binding and/or grinding noises are caused when the side rails are rotated

Locking/latching mechanism reliably self-engages when the side rails are fully rotated to the raised/closed position

Locking/latching mechanism completely disengages when the PRESS button is depressed permitting the side rails to fully rotate to the lowered/open position

If equipped with the optional Electronic Foot Side Rail Release feature, the electronically actuated unlocking/unlatching mechanism completely disengages, when the “FOOT RAIL/PRESS 3X” button is pressed 3 times

IMPORTANT: Special service instructions are required to service/replace these foot side rail assemblies. Contact Stryker Medical Technical Service for further details and special service instructions prior to performing any/all service activities on these foot side rail assemblies. Component damage may occur if service is attempted without special service instructions.

WARNING! Patient entrapment within, under, between, and beside side rails may cause injury or death. Ensure only specified mattress (minimum 6” thick) is used on bed. Ensure that mattress is in good condition and maintains proper resilience. If mattress is exhibiting any signs of wear (i.e.: reduced cross sectional thickness, reduced resilience, etc.) stop use immediately and replace mattress to limit patient exposure to a potential rail entrapment situation.

WARNING! To help minimize the potential for patient entrapment, CHG Hospital Beds recommends that the customer perform thorough inspection of all side rail assemblies to confirm continued compliance per the standards found in the technical specifications. If testing results indicate a potential risk of patient rail entrapment, discontinue patient bed use and remove the bed from active service immediately.

Sign off on the 1 Year High Side Rail Inspection

Bed is plugged into an AC power outlet

Battery is connected to the CB10/CB11 control box

The power status indicator has ONLY a solid Green AC light

If other lights are on/flashing, refer to page 63 for instructions and take appropriate action before continuing with inspection

Unplug the bed from the AC power outlet and perform all bed functions, including emergency functions, to test bed operation under battery power

Battery is holding a proper charge sufficient to deliver emergency functions when needed

Replace battery if performance is inadequate

Perform all bed functions from footboard staff control

Perform all bed functions from patient/staff siderail controls
