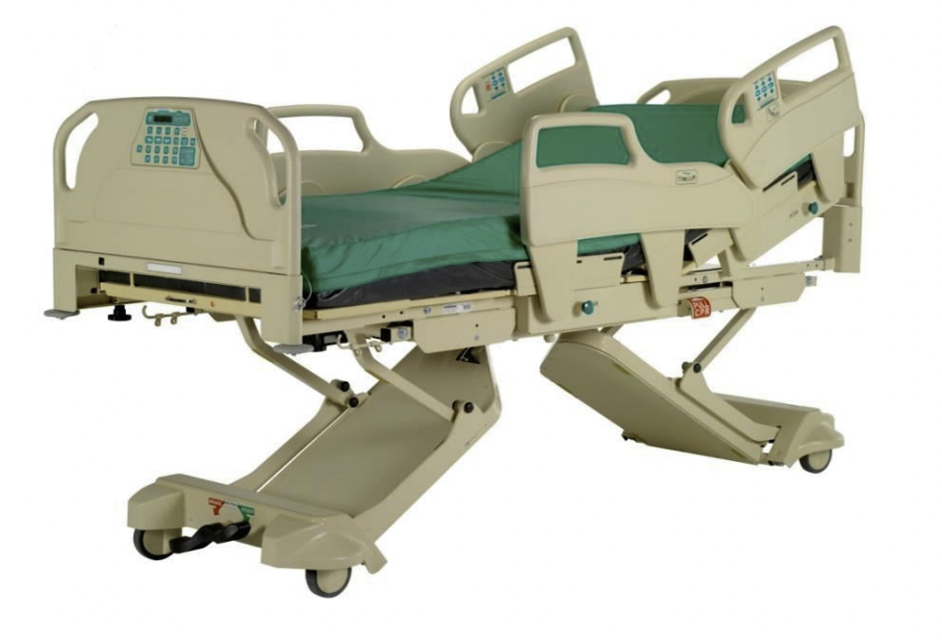

Stryker Stryker Bed Spirit Select Spirit Select

Inspect the bed for broken, bent, or damaged components and replace. Check for damaged components that may present a hazard due to sharp edges

Inspect for damaged or loose wiring. Have qualified service personnel, specifically trained to service SpiritTM beds, replace any frayed or damaged cords and/or secure any loose wiring

Inspect the control boxes and actuators to ensure that the enclosures are not cracked or damaged

Inspect the footboard staff control, side rail controls, and pendant to ensure that the overlays covering these controls are not cracked or damaged

Inspect all grounding wires and equipotential conductor. Ensure they are securely fastened to the bed frame

Tighten, adjust and/or replace any parts or screws, bolts, clevis/hitch/cotter pins, etc. that are loose or show signs of wear

Spray metal shoulder bolts, washers, bushings and nuts using a high quality penetrating white lithium grease spray on all control arm and suspension arm joints

Ensure that each side rail fully and smoothly rotates from the DOWN position to the UP position. Ensure that no binding and/or grinding noises are caused when the side rails are rotated. If a side rail fails to rotate fully and smoothly, service and/or replace side rail assembly

Ensure that the locking/latching mechanism reliably self-engages when the side rails are fully rotated to the raised/closed position. If locking/latching mechanism fails to reliably self-engage service and/or replace side rail assembly

Perform all bed functions from all control locations: footboard staff control, patient/staff siderail controls, and pendant

Battery bed is plugged into an AC power outlet

Battery is connected to the CB10/CB11 control box

The battery's power status indicator has ONLY a solid Green AC light

Ensure that contact at any point on each of the six obstruction sensor pads stops all downward bed motion

Ensure that the bed automatically elevates the 1” safety distance

Ensure audible and visual warnings are present

Replace any obstruction sensor pad that fails to operate correctly or consistently

Sign off on the 6 monthly inspection
