WARNING: If your unit is equipped with the optional electric lift/litter, unplug the power cord from the power outlet before transporting or cleaning the unit. Do not steam clean the unit.

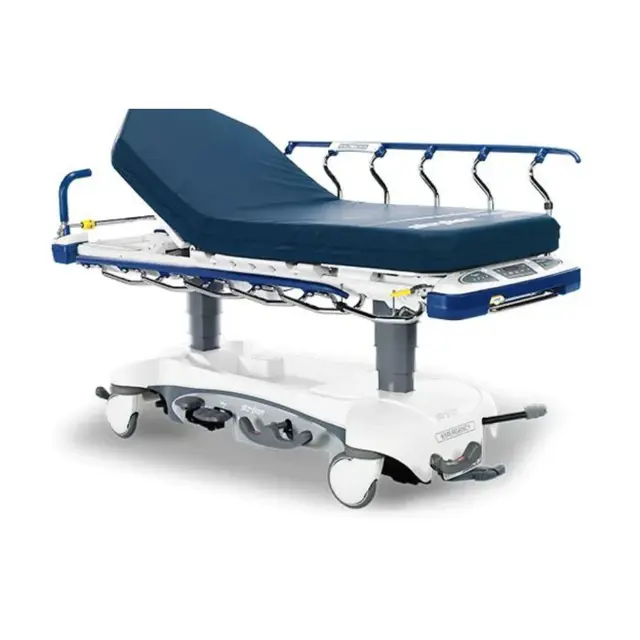

These instructions are intended to provide recommended cleaning methods for Model 1105 Prime Series stretchers.

These units are designed to be power-washable. The unit may show some signs of oxidation or discoloration from continuous washing.

No degradation of the stretcher’s performance characteristics or functionality will occur due to power washing as long as the proper procedures are followed.

Followed the cleaning solution manufacturer’s dilution recommendations exactly?

Used standard hospital surgical cart washer for power washing?

Did not replace the mattress on the stretcher until the unit is completely dry?

CAUTION! Before returning the unit to service after cleaning, verify that labels are intact, raise/lower the stretcher, lock the brake/ steer pedal in both positions, latch/unlatch the siderails, and raise/lower the fowler and gatch.

Siderails move and latch properly

All casters lock with brake pedal engaged

All casters secure and swivel properly

Inspect each caster and remove any wax or debris which may have collected on the caster or braking mechanism

Steer function working properly

Fowler operates and latches properly

Gatch operating properly (Optional equipment)

WARNING: Disinfect the mattress between patients. Failure to do so could result in cross-contamination and infection.

WARNING: Some disinfectants may cause damage to the product if used improperly.

WARNING: The mattress cover must be completely dry before storage or adding linens.

CAUTION: Frequent or prolonged exposure to higher concentration disinfectant solutions may prematurely age the cover fabric.

CAUTION: The use of accelerated hydrogen peroxides or quaternaries containing glycol ethers may damage the cover.

Ensure surface has been thoroughly cleaned and dried prior to applying disinfectants.

Wipe down the mattress with a clean, dry cloth to remove any excess liquid or disinfectant.

Care must be taken to thoroughly rinse and dry covers following disinfection.

WARNING: Do not immerse mattress in cleaning or disinfectant solutions. Excess moisture could cause equipment malfunction resulting in equipment damage or patient injury.

Do not allow fluid to pool on the mattress. Fluids can cause corrosion of components and may cause the safety and performance of this equipment to become unpredictable.

Inspect mattress covers for tears, punctures, excessive wear, and misaligned zippers each time the covers are cleaned. If compromised, the mattress should be removed from service immediately and replaced to prevent cross-contamination.

Is the mattress cover intact and without tears, punctures, excessive wear, and misaligned zippers?

Stryker mattresses are designed for long-lasting comfort and reliability. The life of the mattress can be adversely affected by an increase in frequency of usage which might include more frequent cleaning and disinfection.

Wipe down the entire mattress with a mild soap and water solution to remove foreign material. Was this step completed successfully?

Wipe down the mattress with a clean, dry cloth to remove any excess liquid or cleaning agent. Was this step completed successfully?

Rinse and dry covers thoroughly following cleaning. Was this step completed successfully?

Disinfect as necessary with a hospital grade disinfectant after cleaning has been completed. Was this step completed successfully?

Warning: Follow the instructions carefully to avoid voiding the product's warranty.

Enter the amount of Sodium Thiosulfate used

Was the stain cleaned immediately after it occurred?

Was the solution allowed to soak on the surface before wiping?

Was the surface rinsed with clear water before returning the mattress to service?

Sign here to confirm that you followed the instructions
