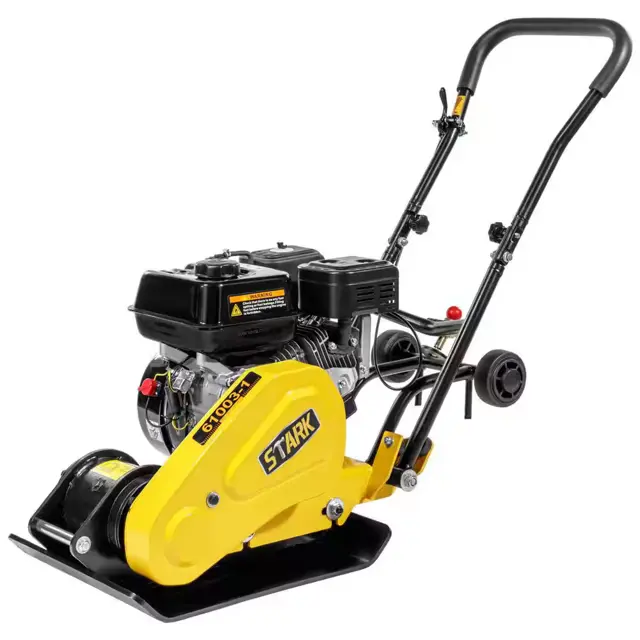

Stark Vibratory Plate Compactor 29155

Create an account to install this asset package.

Maintenance Plans for Stark Vibratory Plate Compactor Model 29155

Integrate maintenance plans directly into your work orders in MaintainX.

50 Hourly V-Belts Maintenance

1) Checking V-Belt(s)

• To ensure optimum power transmission from the engine to the eccentric shaft, the V-belt(s) must be in good condition and operate under proper tension.

1. Turn off engine. Engine must be cool.

2. Remove the belt guard to access the V-belt(s).

3. Check the condition of the V-belt(s). If any V-belt is cracked, frayed, or glazed, it should be replaced as soon as convenient.

4. Check the V-belt tension by squeezing them in the center. The normal deflection on each side should be 9mm (3/8”) to 13mm (1/2”) with moderate pressure from your thumb or finger.

2) Tensioning V-Belt(s)

• Proper belt tension is critical to good performance.

• Proper adjustment will assure long belt life.

Run this procedure

200 Hourly Exciter Lubrication

Warning: Let exciter cool before changing exciter oil.

Removed the belt guard and V-belt(s)?

Removed the bolts that hold the deck to the housing?

Lifted entire deck with engine from housing?

Removed pipe plug from top of exciter housing?

Drained oil from exciter and examined for metal chips?

Returned plate housing to the upright position?

Filled the exciter housing with exciter oil without overfilling?

Applied pipe sealant to pipe plug and reinstalled into top of exciter housing?

Run this procedure

Initial 20 Hours V-Belts Check

Warning: Ensure the engine is turned off and cool before starting the procedure.

Engine turned off?

Engine cool?

Remove the belt guard to access the V-belt(s).

Belt guard removed?

V-belt(s) in good condition?

If any V-belt is cracked, frayed, or glazed, it should be replaced as soon as convenient.

V-belt(s) replaced if necessary?

Check the V-belt tension by squeezing them in the center.

Run this procedure

Vibratory Plate Compactor Preventive Maintenance

Engine turned off and cool

Engine’s throttle lever in its SLOW position, spark plug wire removed and secured

General condition of the plate compactor inspected for loose screws, misalignment or binding of moving parts, cracked or broken parts

All debris removed from the plate compactor with a soft brush, vacuum, or compressed air

All moving parts lubricated with a premium quality lightweight machine oil

Bottom of the compactor base cleaned

Spark plug wire replaced

CAUTION! Never use a “pressure washer” to clean your plate compactor. Water can penetrate tight areas of the unit and cause damage to spindles, pulleys, bearings, or the engine. The use of pressure washers will result in shortened life and reduce serviceability.

Sign off on the preventive maintenance
