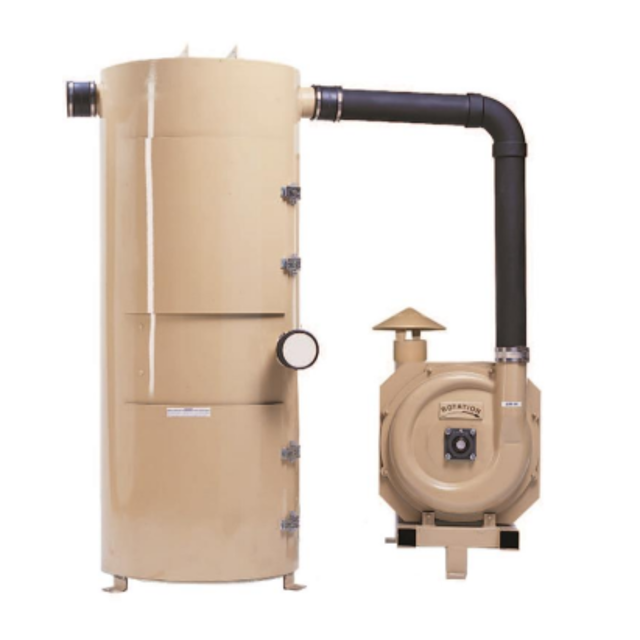

Sonny's Enterprises Central Vacuum System 15HP

Filter Bag Inspection and Replacement

Inspect all filter bags for wetness or tears

Replace filter bag if necessary

Ensure the filter bag is securely attached

Wrap Velcro straps around the bar on the inside top of the vacuum separator

Dirt Canister and Filter Access Door Inspection

Inspect dirt canister and filter access door gaskets

Clean the bearing and bracket cavity

Refill the bearing and bracket cavity with Mobil Polyrex EM grease

Replace pipe plugs with grease fittings

Ensure fittings are clean and free from dirt

Pump in 1-2 pumps of grease using a low pressure grease gun

Check for new grease appearance at the grease relief hole

Allow motor to run for 10 minutes before replacing pipe plugs

Inspect all hardware for tightness

Inspect hardware on the WE5 coupler using 17 foot LBS of torque

Check rubber coupler element for damage

Replace rubber coupler element if damaged

Ensure the nut attached to the anchors is loose or taken off

Empty collected trash from the dirt canister

Open the latches for the dirt canister access door (bottom door)

Remove and empty the dirt canister

Clean the compartment around the canister

Replace the empty canister in the storage compartment against the alignment flange

Check the black rubber seal around the door for cracks, leaks, or tears

Close the access door and press the center of the door before fastening the latches

Turn on the vacuum and listen for any leaks around the door gasket
